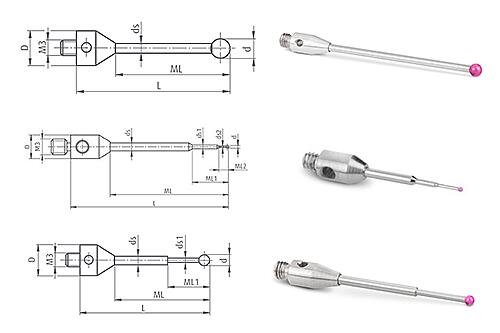

M3 XXT ruby ball with carbide shank

Bestellnummer L ds ML Weight (kg) d ds2 ML2 ds1 ML1 Preis (EUR)
DK--E51715001 20 1 11 0.0007 0.2 0.17 1 0.5 4.5 105,00
DK--E51715002 20 1 11 0.0007 0.3 0.23 1.3 0.5 4.5 62,00
DK--E51715003 20 1 11 0.0007 0.5 0.32 2.6 0.6 4.5 52,00
DK--E51715004 20 1 11 0.0007 0.6 0.4 4.3 41,00
DK--E51715005 20 1 11 0.0007 0.8 0.5 5.4 41,00
DK--E51715006 20 0.8 11 0.0007 1 41,00
DK--E51715007 30 1 21 0.0008 1 0.7 5.5 39,00
DK--E51715008 40 1 31 0.0015 1 0.7 5.5 41,00
DK--E51715009 20 1 11 0.0007 1.5 39,00
DK--E51715010 30 1 21 0.0009 1.5 39,00
DK--E51715011 40 1 31 0.0016 1.5 39,00
DK--E51715012 20 1 11 0.0007 2 38,00
DK--E51715013 30 1 21 0.0008 2 38,00
DK--E51715014 40 1.5 31 0.0017 2 39,00
DK--E51715015 20 1.5 11 0.001 2.5 39,00
DK--E51715016 30 1.5 21 0.0015 2.5 39,00
DK--E51715017 40 1.5 31 0.002 2.5 39,00

CAD Daten
