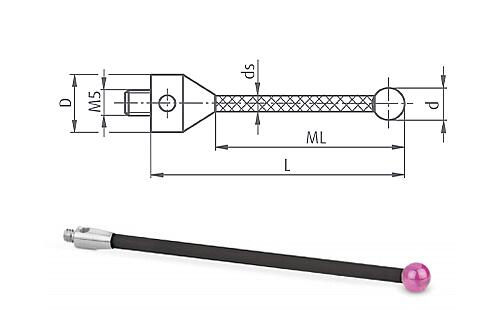

Push-button M5 ruby ball with carbon fibre shaft

Bestellnummer L ds ML Weight (kg) d Preis (EUR)
DK--E51516003 50 2 40 0.004 3 49,00
DK--E51516004 58 2 48 0.004 3 52,00
DK--E51516008 75 3.5 65 0.005 5 53,00
DK--E51516009 100 3.5 90 0.005 5 54,00
DK--E51516015 100 6 87 0.0125 8 73,00
DK--E51516016 114 6 101 0.0125 8 75,00
DK--E51516018 200 6 187 0.014 8 105,00
DK--E51516020 118 6 105 0.015 10 95,00
DK--E51516021 150 6 137 0.016 10 116,00
DK--E51516022 200 6 187 0.017 10 127,00
DK--E51516023 50 6 37 0.011 8 69,00

CAD Daten
