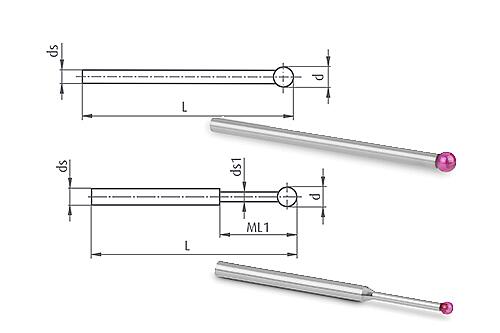

Probe without thread Ruby ball with carbide shank

Bestellnummer L ds Weight (kg) d ds2 ML2 ds1 ML1 Preis (EUR)
DK--E51013002 15 1 0.0001 0.5 0.3 2.6 0.6 5 41,00
DK--E51013003 15 1 0.0001 0.6 0.4 4 30,00
DK--E51013004 15 1 0.0001 0.8 0.5 5 29,00
DK--E51013005 15 1 0.0001 0.2 0.17 1 0.5 4.5 101,00
DK--E51013006 16 1 0.0001 1 0.7 5 29,00
DK--E51013008 26 1 0.0003 1.35 30,00
DK--E51013009 15 1 0.0001 0.3 0.23 1.3 0.5 4.5 52,00
DK--E51013010 26 1 0.0003 1.5 25,00
DK--E51013011 27 1.5 0.0007 2 28,00
DK--E51013013 27 1.5 0.0007 2.5 28,00

CAD Daten
