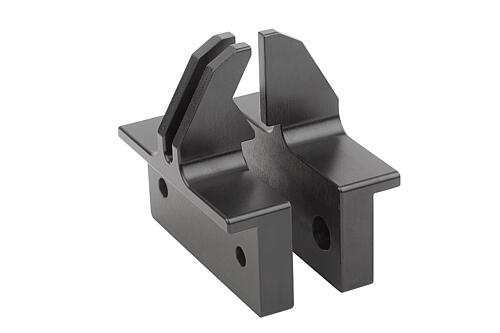

Prismatic jaws three-point system

Order number B Designation Weight BACKENB SPANND Scope of delivery Price (EUR)
DK--306800 50 Prismatic jaws three-point system 50 mm 0.1 5+16 recommended up to 30 mm one double prism jaw and one straight jaw 248,00  VAT
DK--306810 80 Prismatic jaws three-point system 80 mm 0.15 5+16 2-50 mm one double prism jaw and one straight jaw 323,00  VAT
