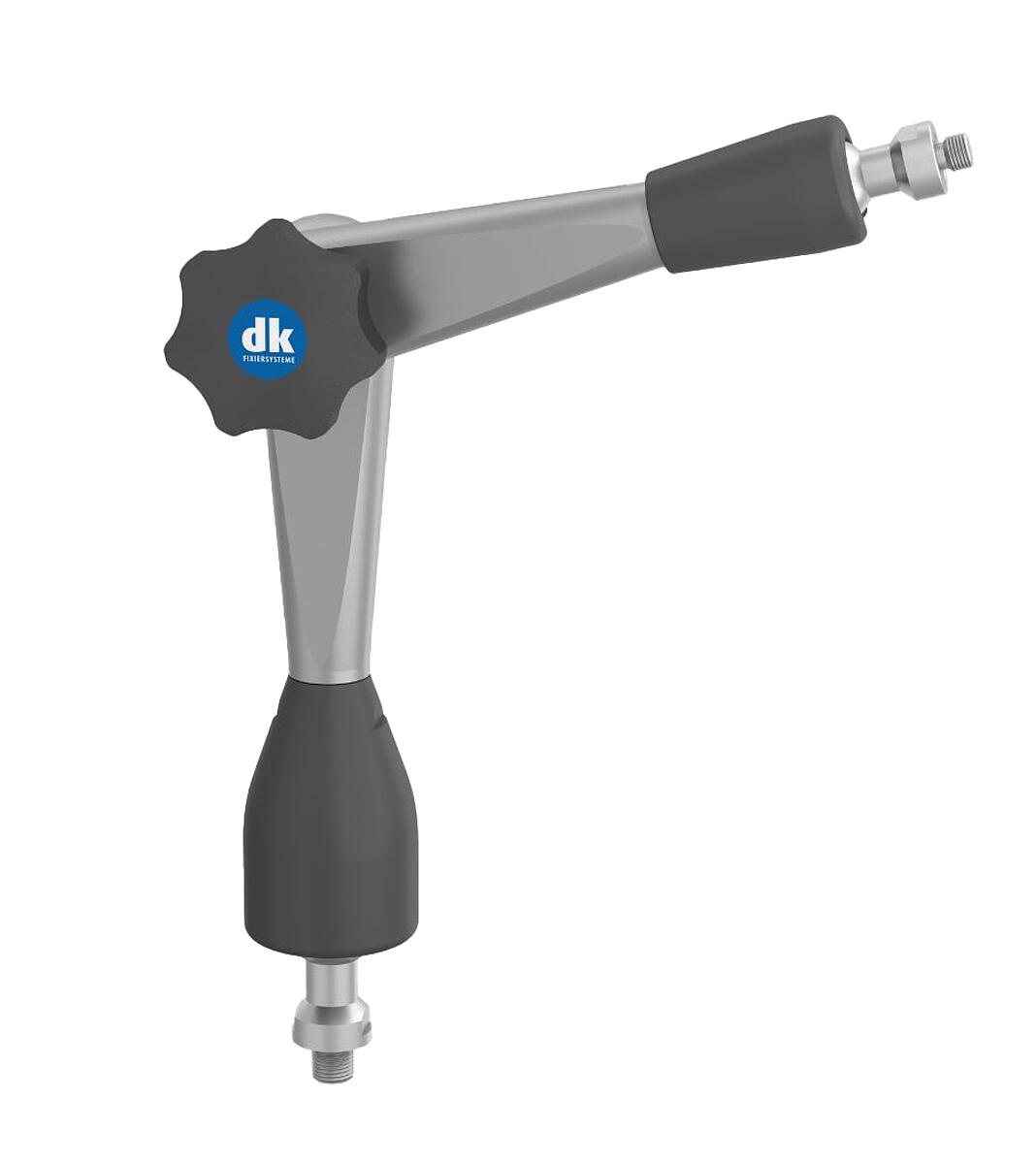

TurnStopLine is characterised by two technical highlights: the positive locking of the central joint by means of a pair of fine locking washers and the consequently further enlarged base ball of the large clamping joint. This absolutely rigid fixation is necessary where dirt or lubricants

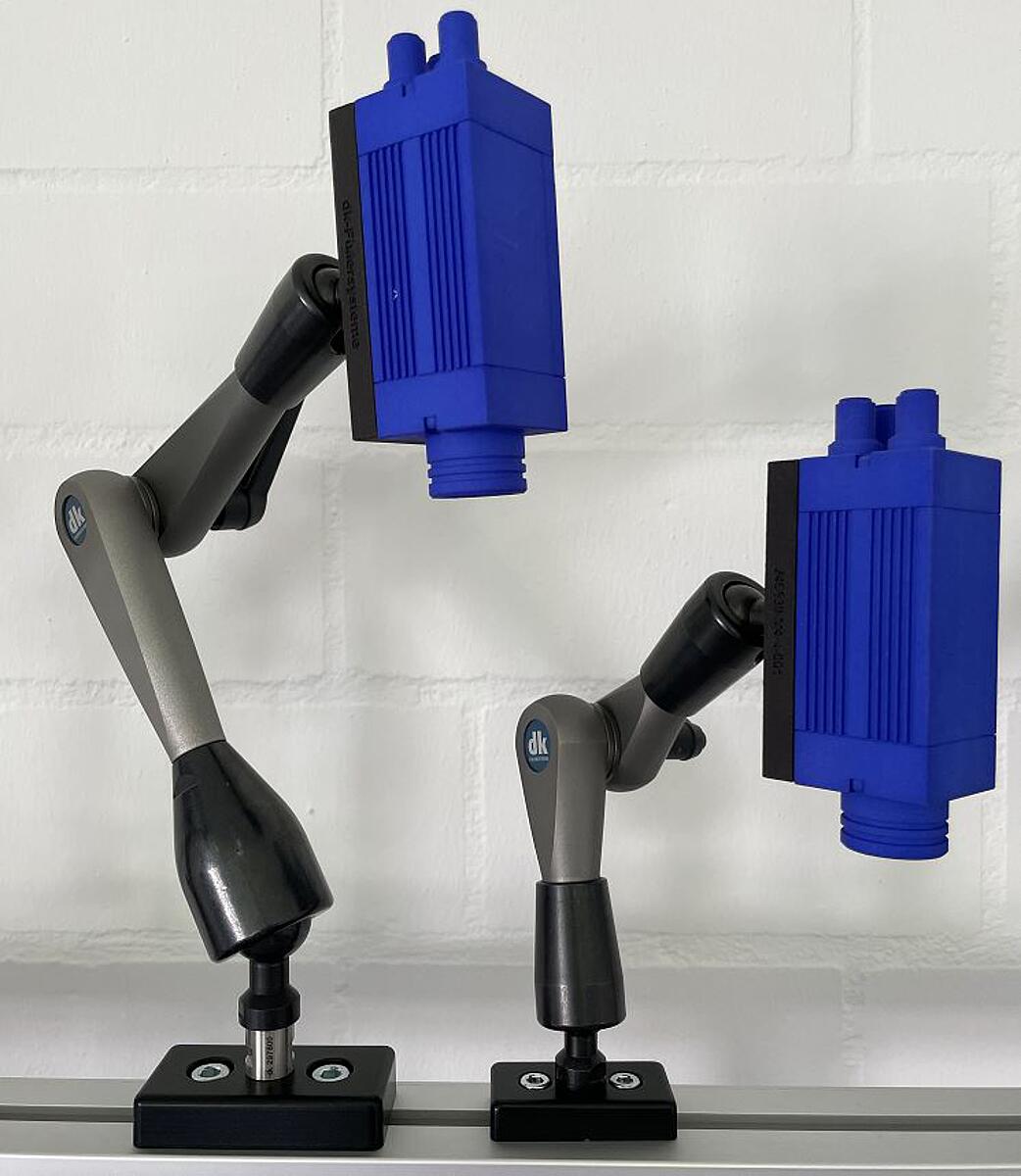

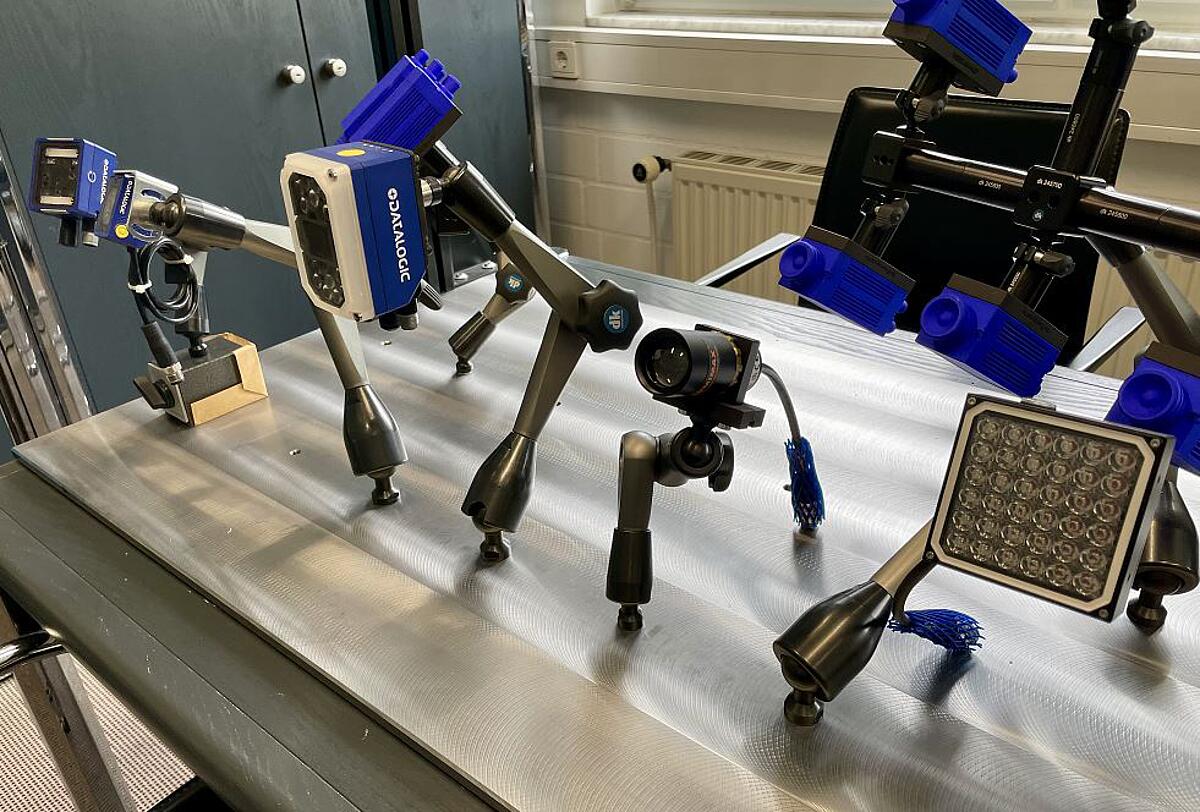

can reduce frictional contacts in production environments. Special applications such as the long-term mounting of vision or sensor elements as well as demanding measurement mounting applications also require this technology. Note: Action radius: Always measured from ball to ball
| Order number | Designation | Weight | Version | Thread | Operating radius | Price (EUR) | |
|---|---|---|---|---|---|---|---|
| DK--241010 | TurnStop clamping joints | 0.74 | with star grip | M8 / M8 | 160 mm | 544,00 € VAT |
|
| DK--241010-H | TurnStop clamping joints | 0.74 | with locking lever | M8 / M8 | 160 mm | 560,00 € VAT |
|
| DK--241031 | TurnStop clamping joints | 1.12 | with star grip | M10 / M8 | 280 mm | 588,00 € VAT |
|
| DK--241031-H | TurnStop clamping joints | 1.12 | with locking lever | M10 / M8 | 280 mm | 594,00 € VAT |
|
