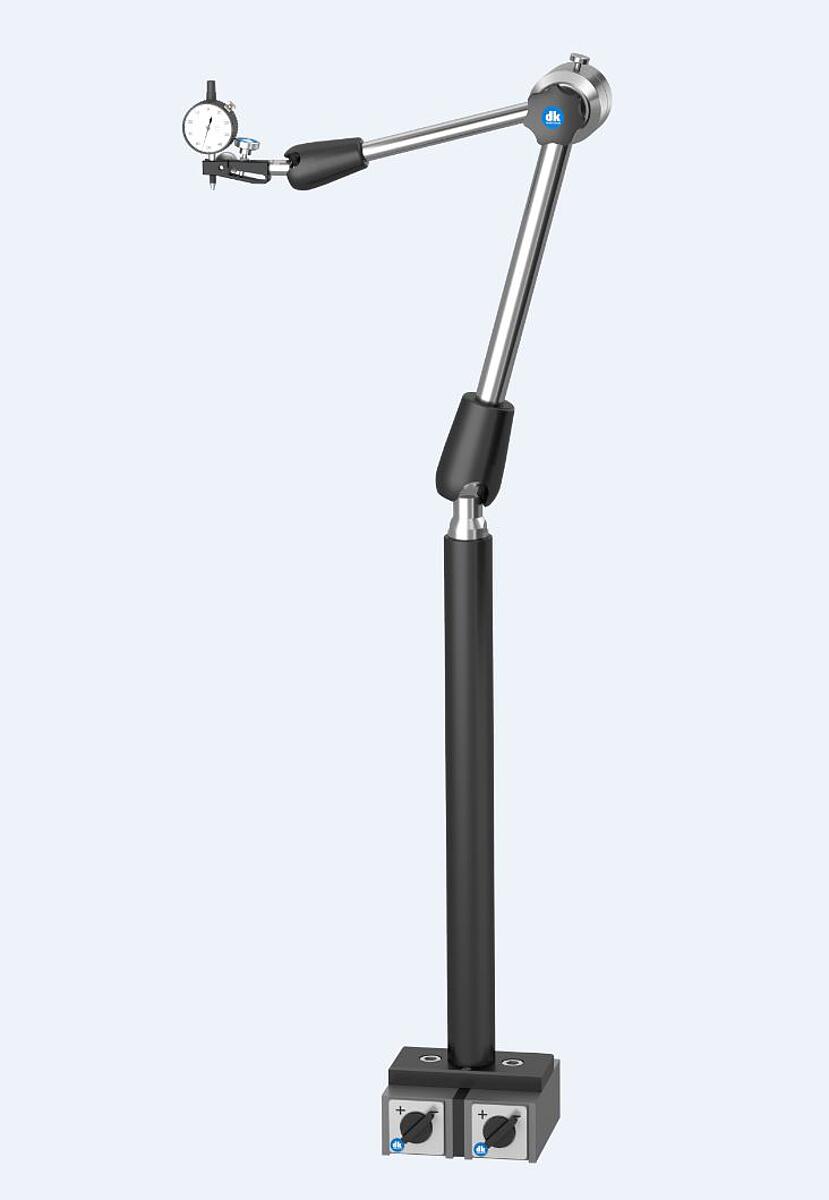

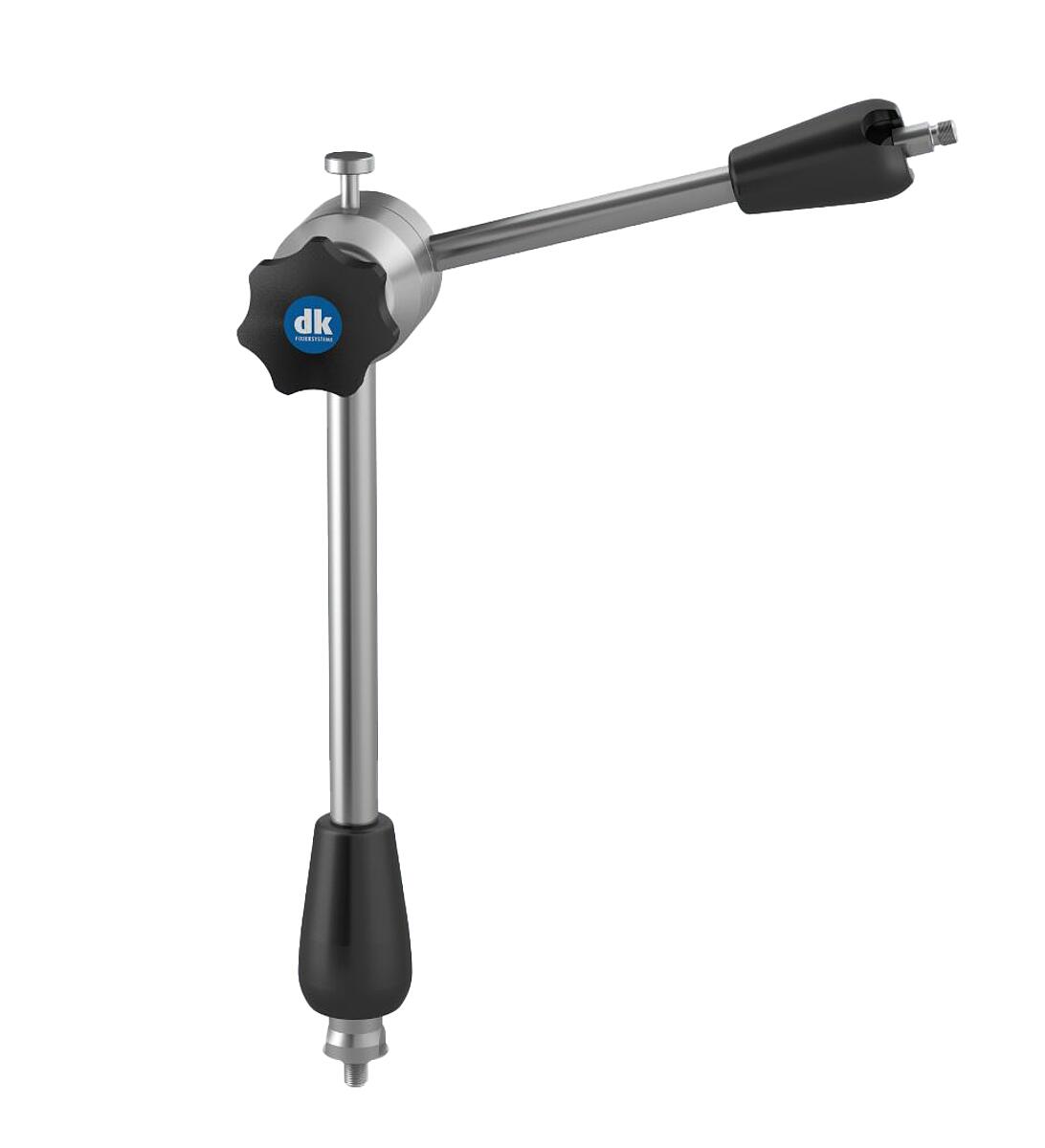

Solid ball joint, and strong, long steel arms for applications with particularly large action radii complete the dk segment of 3D clamping joints for high-end industrial standard. Whether used as a dial gauge stand with a dial gauge holder and extra-strong switching magnet or for a wide range of

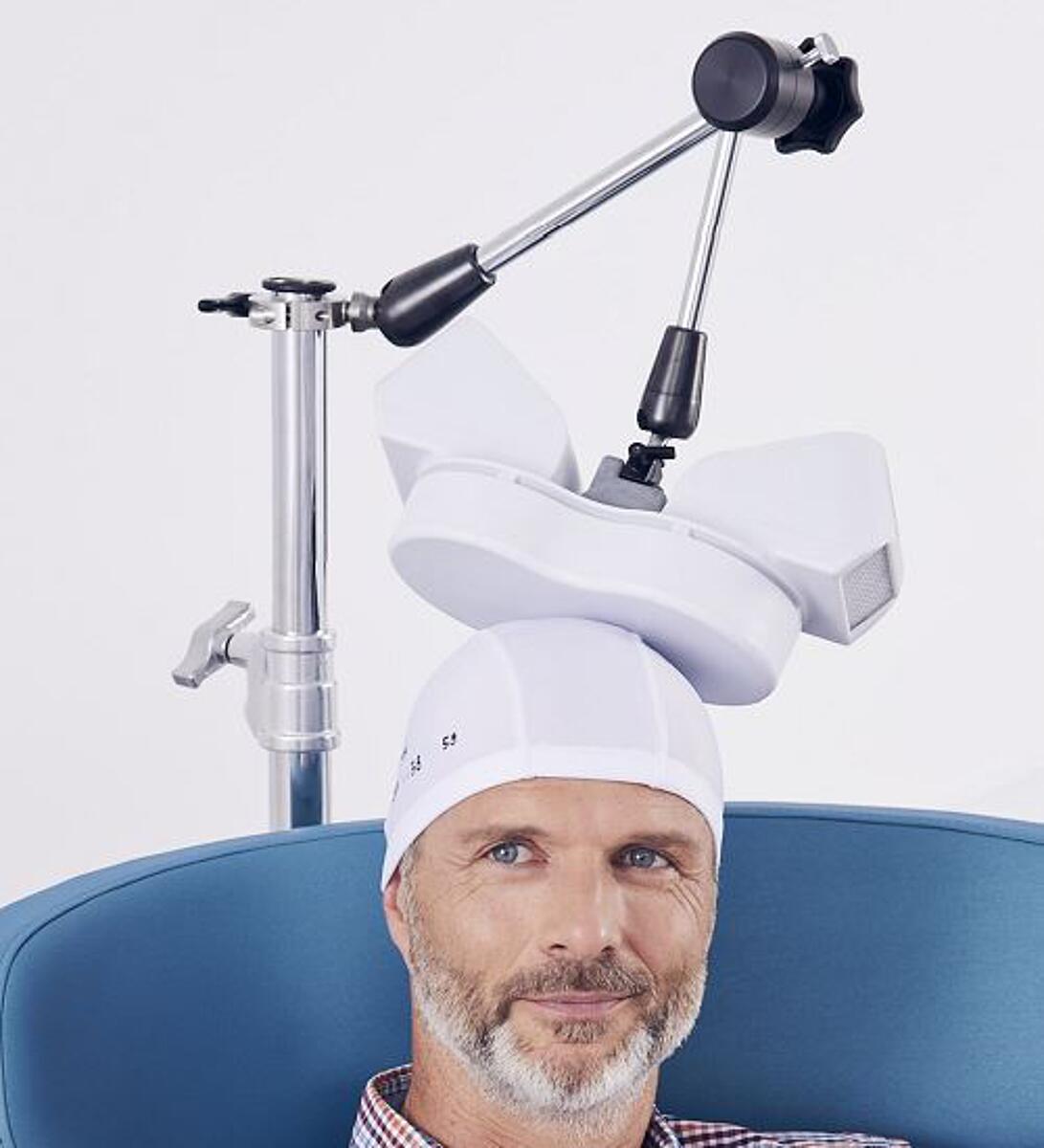

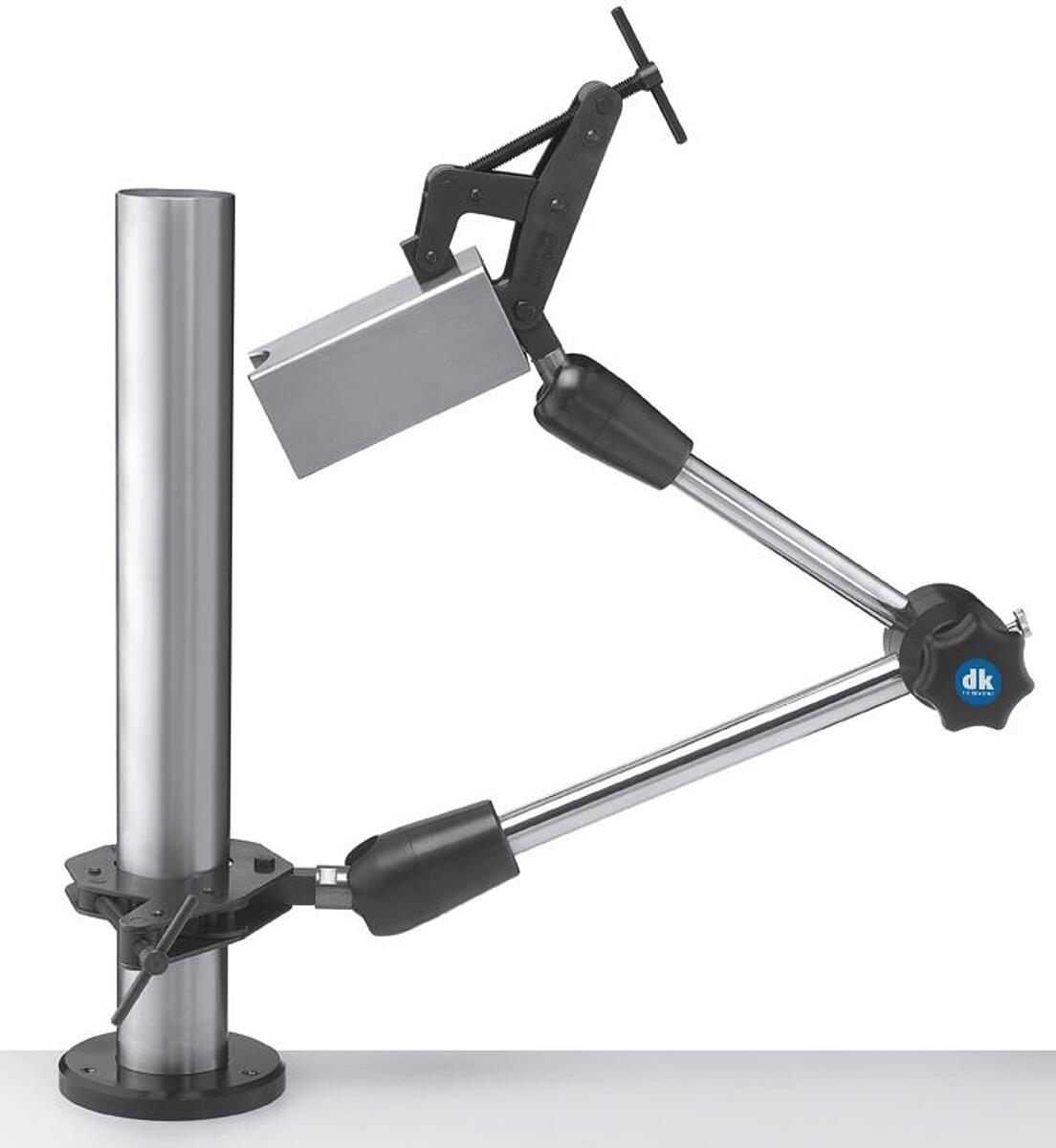

positioning tasks with alternative machine feet and instrument or measuring instrument holders. Part holders - ChromLine fulfils the holding tasks reliably, quickly and play-free with an oversized extension and individually adjustable pre-tension. Note: Action radius: Always measured from ball to ball
| Order number | Designation | Weight | Version | Thread | Operating radius | Price (EUR) | |
|---|---|---|---|---|---|---|---|
| DK--242041 | ChromLine clamping joints | 1.65 | with star grip | M8 / M8 | 410 mm | 384,00 € VAT |
|
| DK--242041-H | ChromLine clamping joints | 1.65 | with locking lever | M8 / M8 | 410 mm | 392,00 € VAT |
|
| DK--242051 | ChromLine clamping joints | 3.75 | with star grip | M10x1.25 / M8 | 560 mm | 590,00 € VAT |
|
| DK--242051-H | ChromLine clamping joints | 3.75 | with locking lever | M10x1.25 / M8 | 560 mm | 598,00 € VAT |
|
