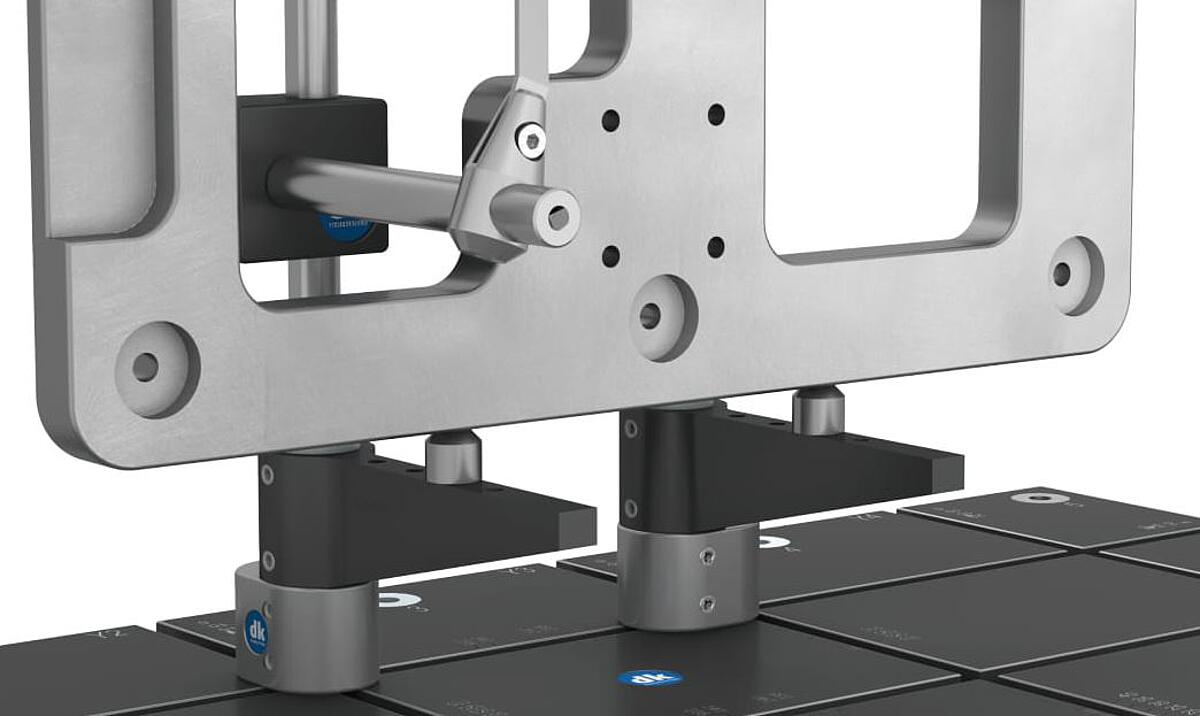

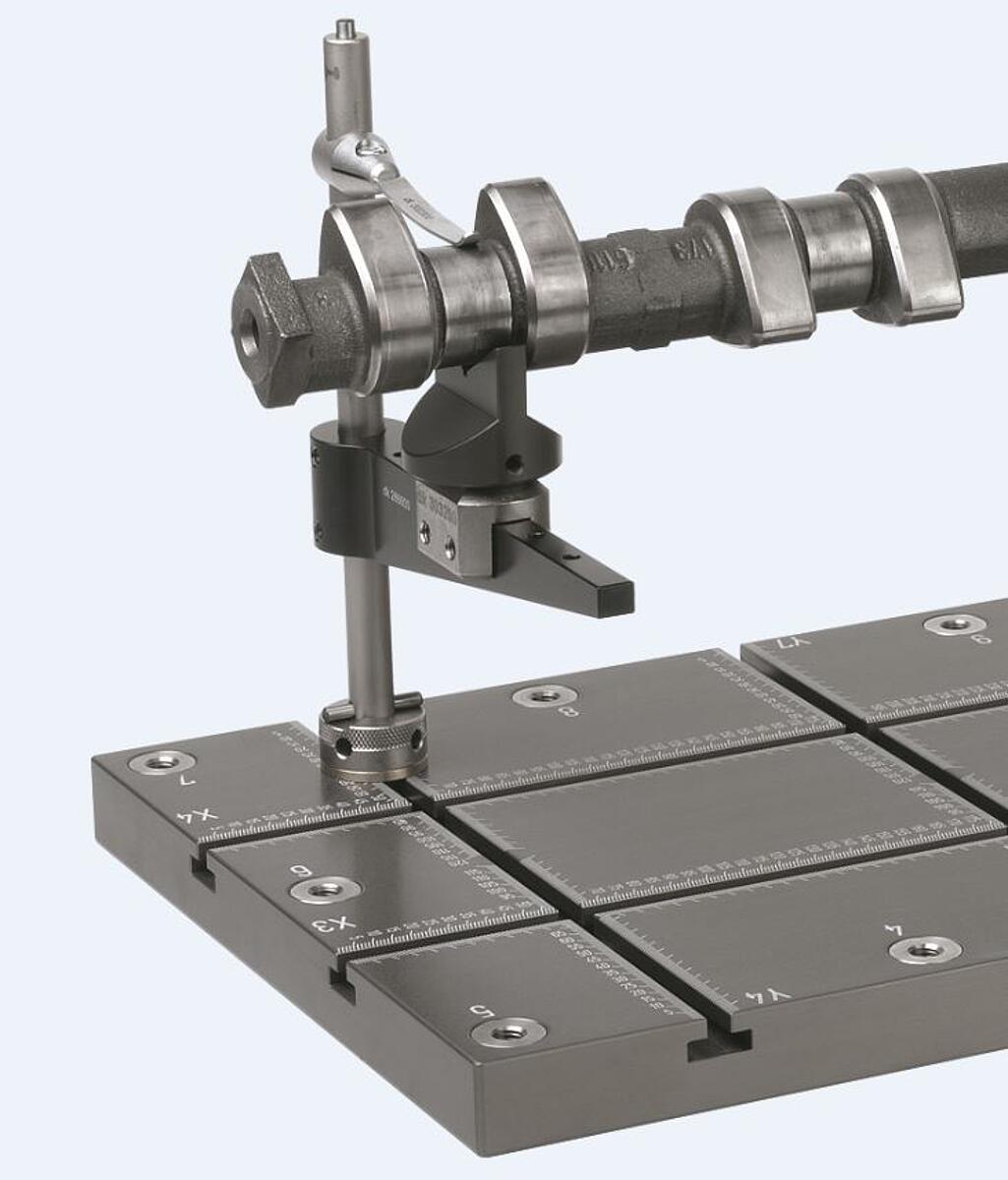

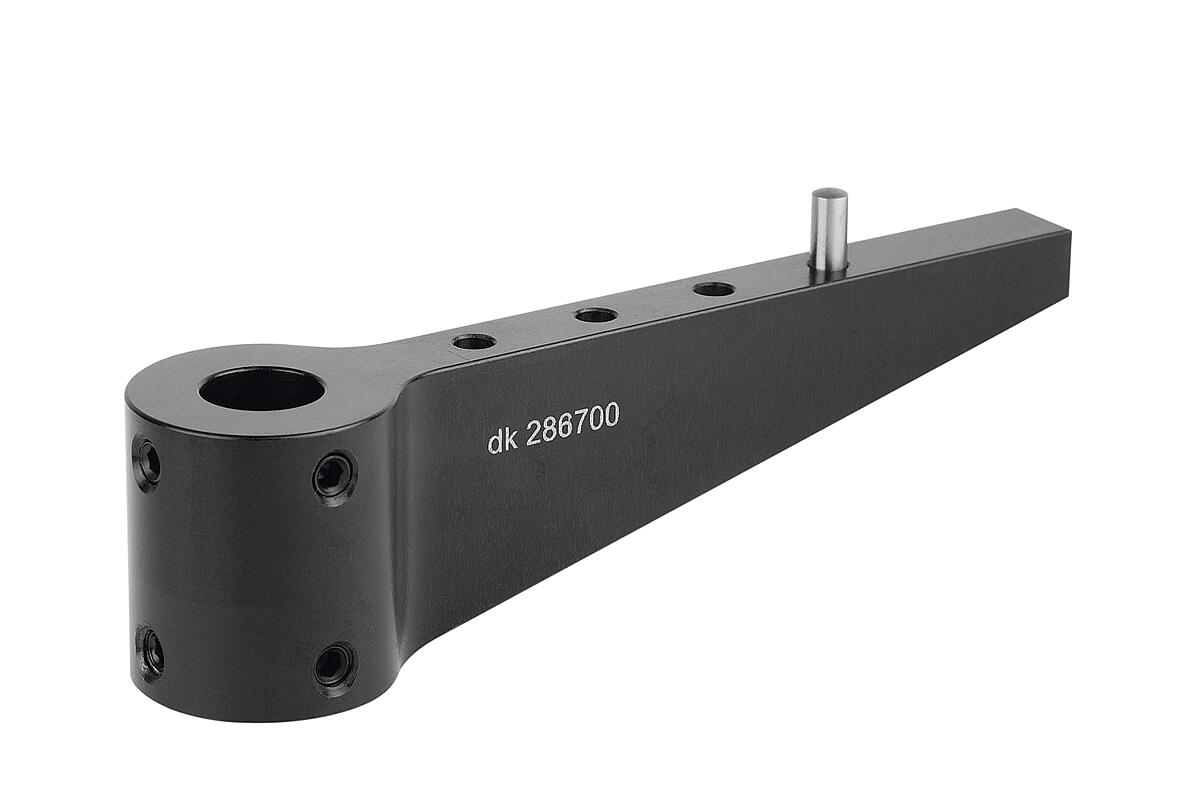

Extension for mounting on Ø 12 mm support columns. With Ø 4 mm holes for stop pins and support pins. Arm width 10mm
for mounting V-block halves and adjustable supports. Material: Hard-coated aluminium. Supplied with: Ø4 mm pin.
| Order number | L | W | Description | Weight | L1 | LA | SL | H | Price (EUR) | |
|---|---|---|---|---|---|---|---|---|---|---|
| DK--286600 | 163.5 | 27 | Outrigger | 0.11 | 150 | 20 | 6 | 30 | 163,00 € VAT |
|
| DK--286700 | 113.5 | 27 | Outrigger | 0.084 | 100 | 15 | 4 | 30 | 125,00 € VAT |
|
| DK--286800 | 73.5 | 27 | Outrigger | 0.042 | 60 | 15 | 2 | 20 | 110,00 € VAT |
|
