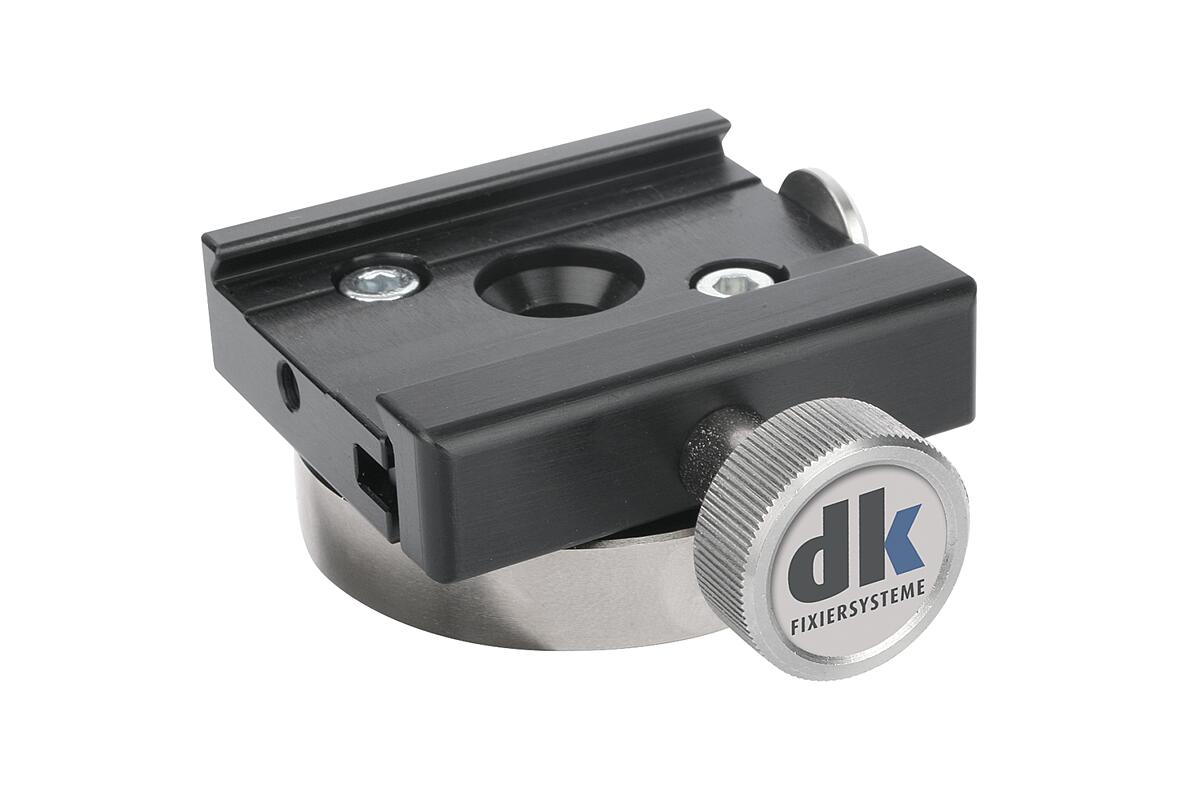

SWA 39 quick-action clamp for direct mounting in tapped holes or T-slots. Mounted on a 12 mm high intermediate plate. Especially in combination with standard clamping elements such as vice and chucks, the system offers a rapid and extremely flexible, exactly reproducible positioning of clamping elements by means of the SWA 39 quick-action clamp for M 6.The result is a zero-point clamping of workpieces that can be dismantled and reproduced identically.SWA
39 quick-action base clamp for mounting all structural, adjustment and clamping elements of the SWA 39 system. For direct fastening in the tapped holes or T-slots. of the respective measuring system. For mounting on the basic elements of the dk SPANNFIX ECO, SPANNFIX PRO, QUADERFIX and SCHIENENFIX programmes. Or in the version with baseplate as a free-standing version. Material: Hard-coated aluminium/stainless steel. Supplied with: Fasteners
| Order number | L | W | Description | BEFSCHRAUBE | Weight | H | H1 | B1 | L1 | Price (EUR) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DK--285204 | 60 | 53.5 | SWA39 quick-release bracket on VA base plate | M 4 | 0.4 | 23.5 | 169,00 € VAT |
|
|||
| DK--285205 | 60 | 53.5 | SWA39 quick-release bracket on VA base plate | M 5 | 0.4 | 23.5 | 169,00 € VAT |
|
|||
| DK--285206 | 60 | 53.5 | SWA39 quick-release bracket on VA base plate | M 6 | 0.4 | 23.5 | 169,00 € VAT |
|
|||
| DK--285208 | 60 | 53.5 | SWA39 quick-release bracket on VA base plate | M 8 | 0.4 | 23.5 | 169,00 € VAT |
|
|||
| DK--285210 | 60 | 53.5 | SWA39 quick-release bracket on VA base plate | M 10 | 0.4 | 23.5 | 169,00 € VAT |
|
|||
| DK--285212 | 60 | 53.5 | SWA39 quick-release bracket on VA base plate | M 12 | 0.4 | 23.5 | 169,00 € VAT |
|
|||
| DK--285250 | 60 | 53.5 | Quick-release bracket with fastening screw | 1.15 | 35.5 | 12 | 80 | 100 | 319,00 € VAT |
|
|
| DK--285300 | 60 | 53.5 | SWA39 quick-release bracket on VA base plate | Set for T-slot 6 | 0.41 | 23.5 | 202,00 € VAT |
|
