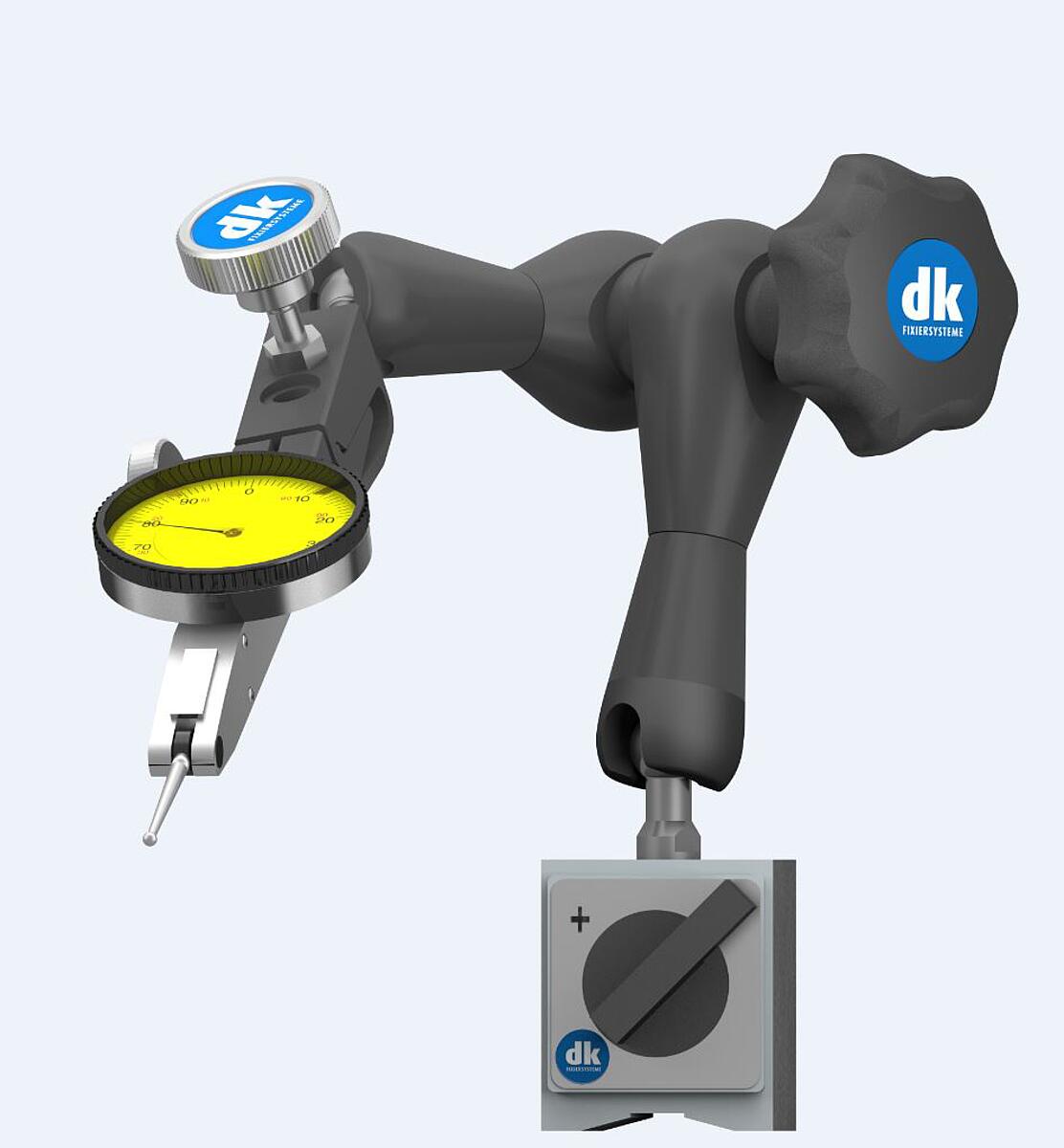

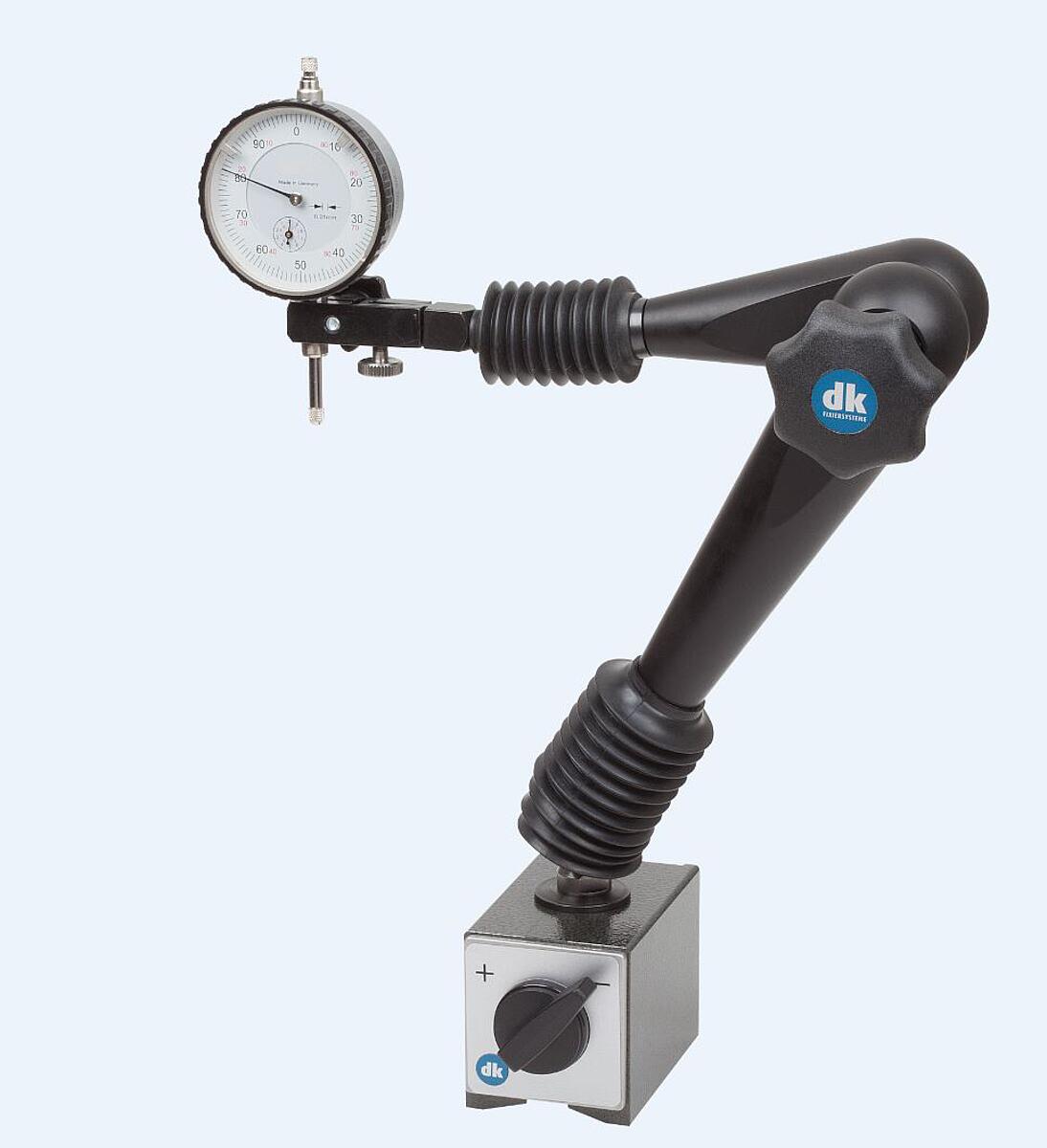

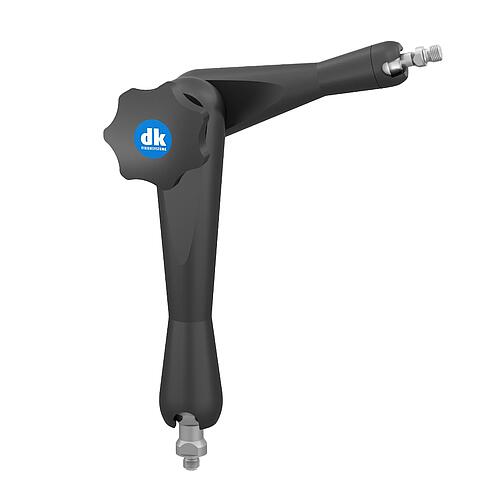

Strongly dimensioned aluminium articulated arms combined with precise ball joints and a central clamping technology that has proven itself over many years for play-free clamping and flexible positioning. Four sizes with an action radius of 100 to 290 mm can be supplemented with various dial
gauge holders and a previously unattainable range of accessories for all applications and requirements. The perfect basis for dial gauge stands and all 3D fixation tasks with high demands on functionality, stability and durability. Note: Action radius: Always measured from ball to ball
| Order number | Description | Weight | Version | THREAD | Operating radius | Price (EUR) | |
|---|---|---|---|---|---|---|---|
| DK--240001 | StrongLine clamping joints | 0.22 | with star grip | M6 / M6 | 100 mm | 138,00 € VAT |
|
| DK--240001-H | StrongLine clamping joints | 0.22 | with locking lever | M6 / M6 | 100 mm | 146,00 € VAT |
|
| DK--240011 | StrongLine clamping joints | 0.335 | with star grip | M8 / M6 | 170 mm | 160,00 € VAT |
|
| DK--240011-H | StrongLine clamping joints | 0.335 | with locking lever | M8 / M6 | 170 mm | 168,00 € VAT |
|
| DK--240021 | StrongLine clamping joints | 0.755 | with star grip | M8 / M8 | 250 mm | 248,00 € VAT |
|
| DK--240021-H | StrongLine clamping joints | 0.755 | with locking lever | M8 / M8 | 250 mm | 256,00 € VAT |
|
| DK--240031 | StrongLine clamping joints | 0.87 | with star grip | M8 / M8 | 290 mm | 294,00 € VAT |
|
| DK--240031-H | StrongLine clamping joints | 0.87 | with locking lever | M8 / M8 | 290 mm | 302,00 € VAT |
|
