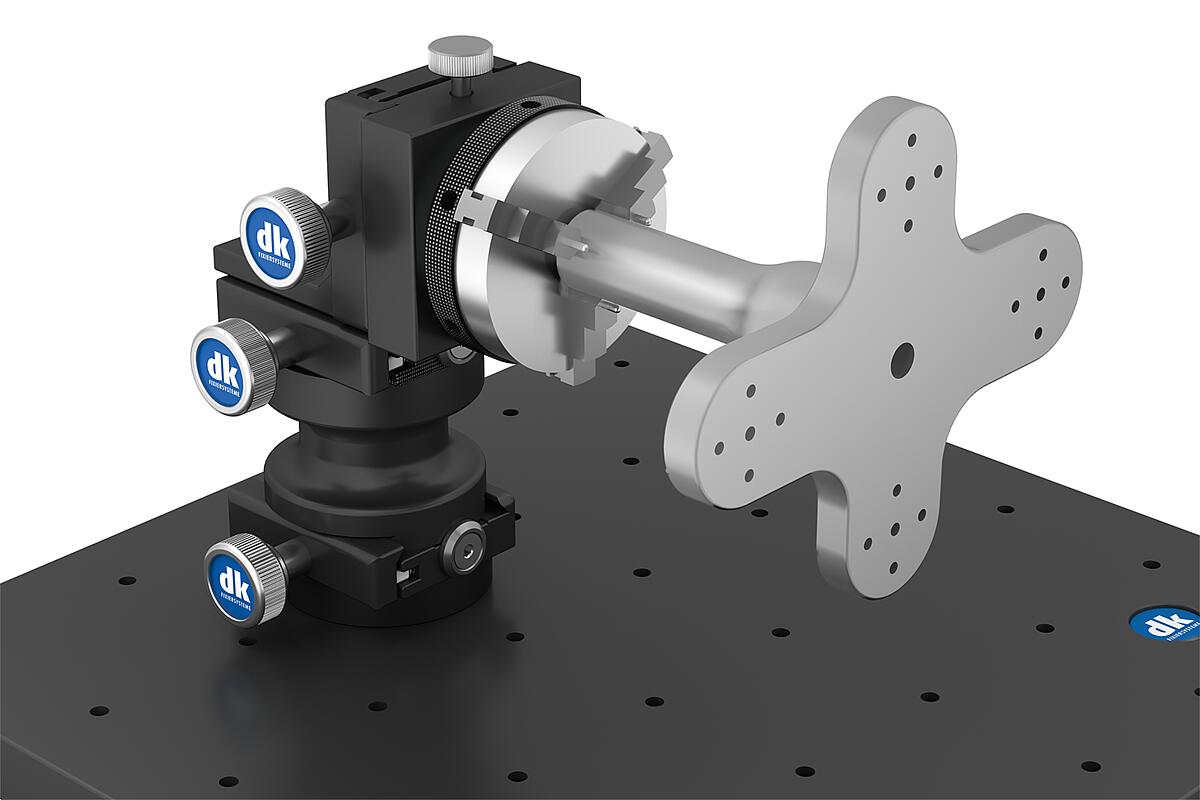

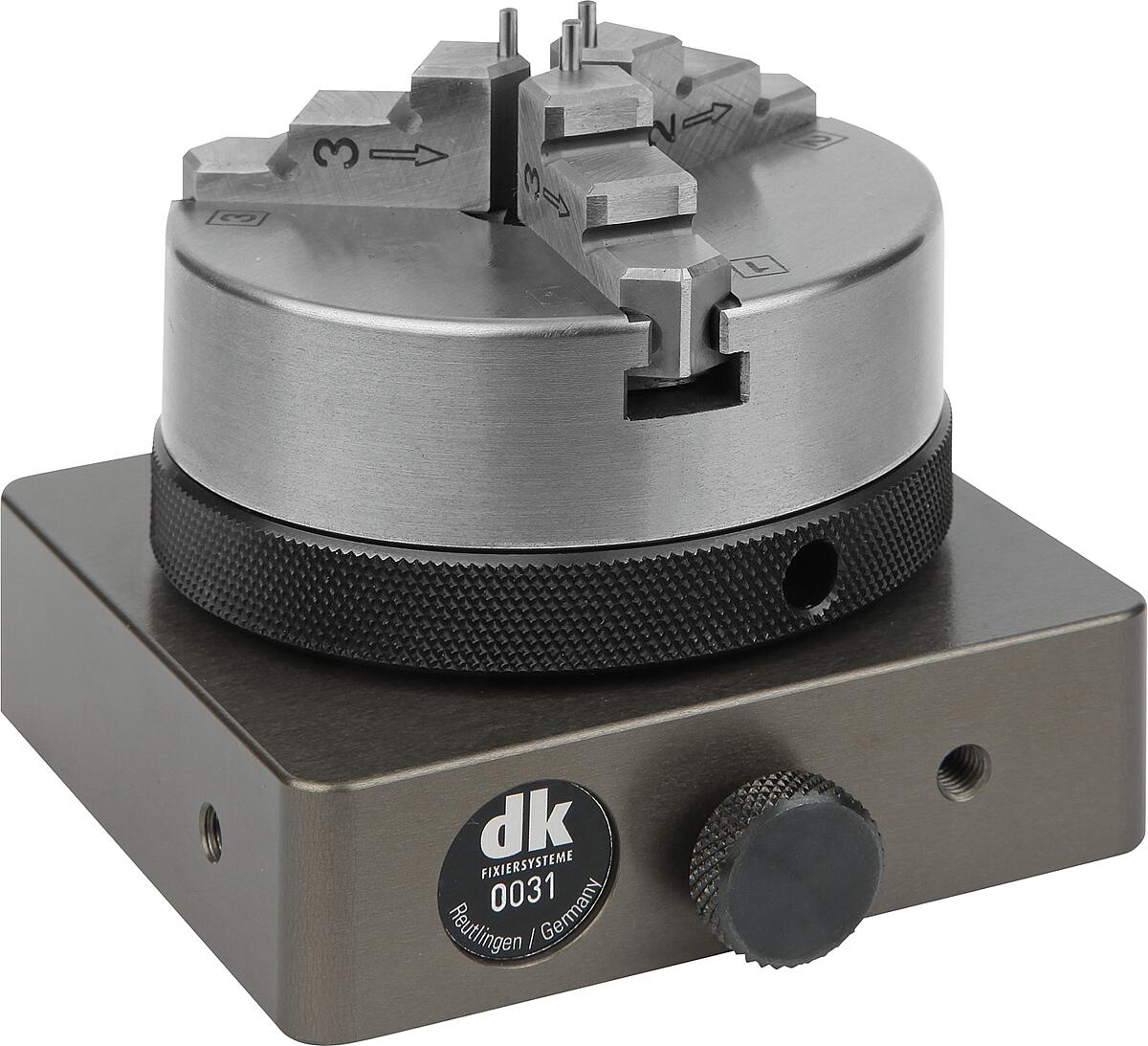

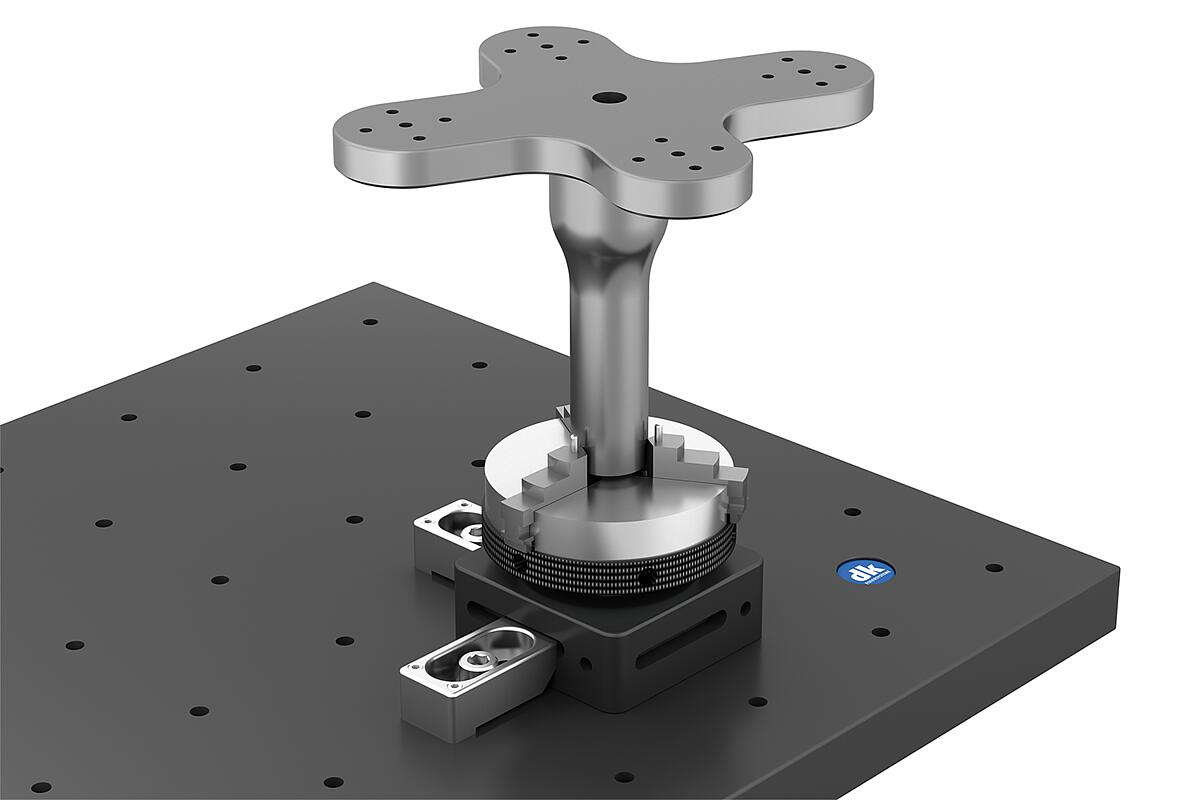

Rotary mounted three-jaw manual chuck with high concentricity. For internal and external clamping of rotationally symmetrical parts. With Ø2 x 7 mm deep holes and 2 sets of pins of different lengths for elevating parts
for access from all sides. Available with an SWA 39 quick-change adapter or base plate. Material: Hard-coated aluminium. Hardened steel jaws. Supplied with: With operating tools and 2 sets of 3 pins 12 mm and 18 mm long.
| Order number | Designation | Weight | Version | D | Concentricity | Price (EUR) | |
|---|---|---|---|---|---|---|---|
| DK--267355 | Rotary table with precision three-jaw chuck | 1.14 | SWA39 | 64 | +/- 0.04 | 1.500,00 € VAT |
|
| DK--267360 | Rotary table with precision three-jaw chuck | 1.14 | Support plate | 64 | +/- 0.04 | 1.567,00 € VAT |
|
| DK--267365 | Rotary table with precision three-jaw chuck | 0.94 | SWA39 | 50.2 | +/- 0.04 | 1.488,00 € VAT |
|
| DK--267370 | Rotary table with precision three-jaw chuck | 0.94 | Support plate | 50.2 | +/- 0.04 | 1.544,00 € VAT |
|
