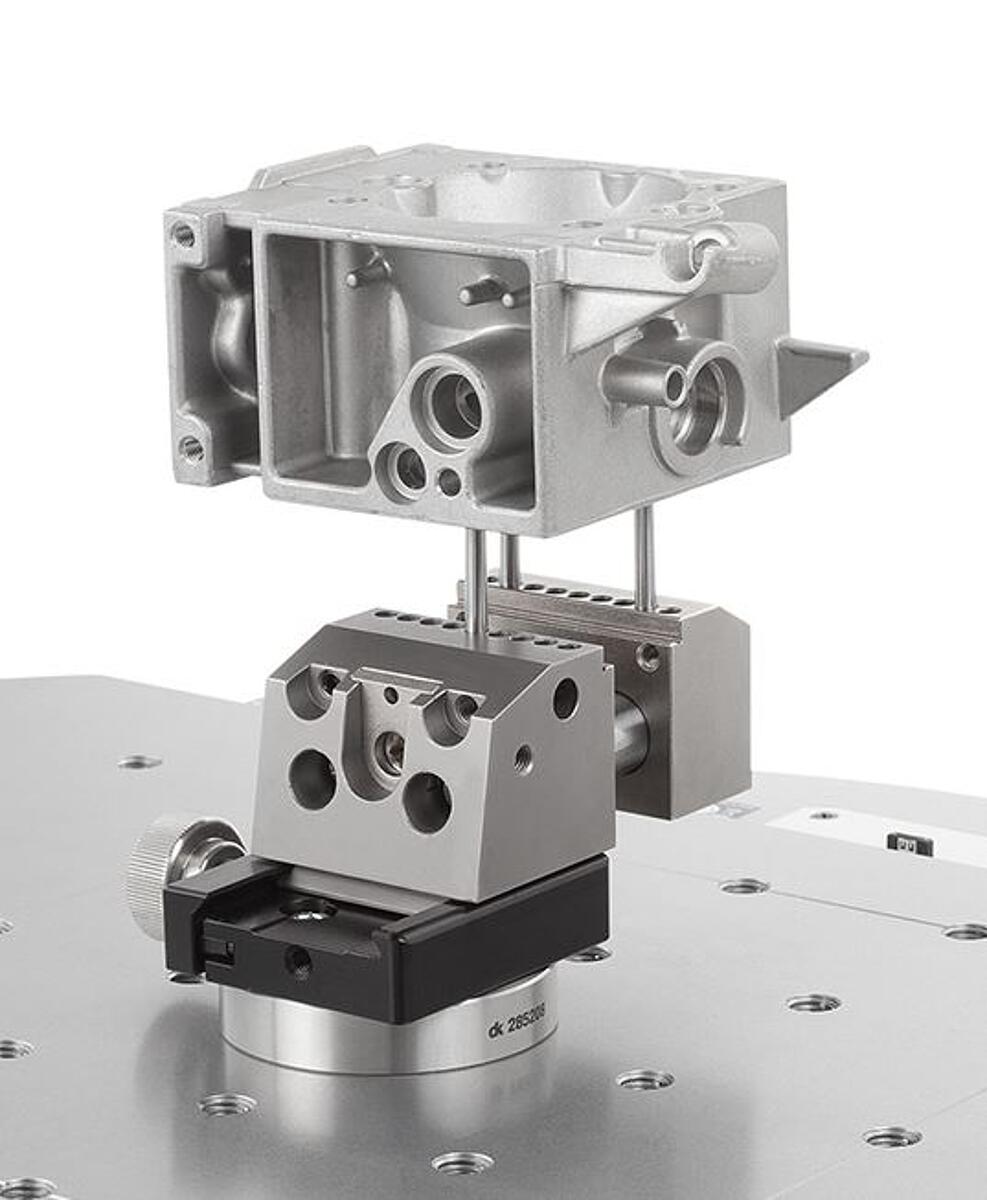

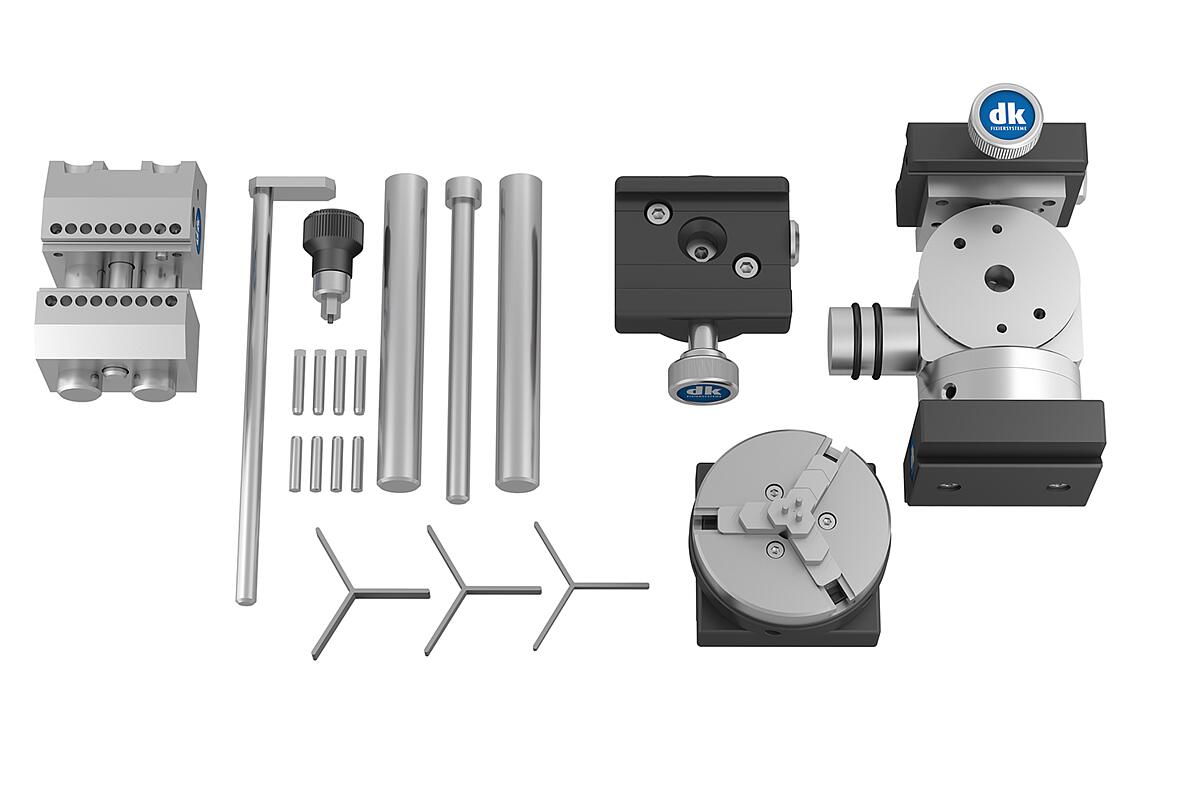

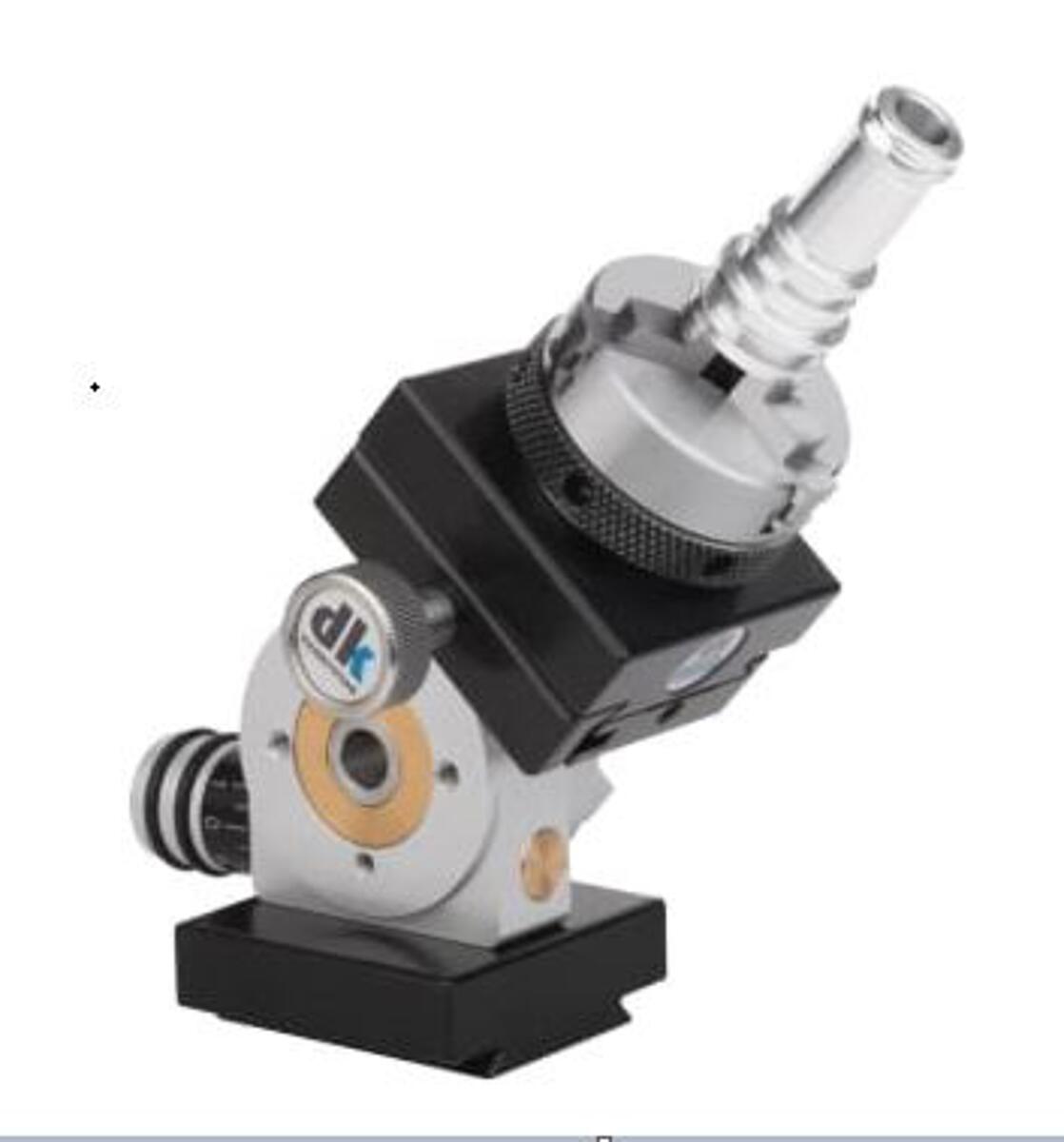

Set "B" with basic, structural and essential clamping elements. The precision vice with a range of accessories, chuck and small-parts clamp can be mounted directly to the quick-action basic clamp as a kind of zero-point clamping fixture. Alternatively, a rotary
and swivel unit can be mounted in between enabling 3D spatial positioning of the clamping element and workpiece. This enables zero-point clamping with variable alignment, and scales ensure that positions can always be exactly reproduced for different workpieces.
| Order number | Description | Version | Price (EUR) | |
|---|---|---|---|---|
| DK--340615-M06 | Clamping set "B" SWA39 / M6 | für Anschlussgewinde M6 | 2.720,00 € VAT |
|
| DK--340615-M08 | Clamping set "B" SWA39 / M8 | für Anschlussgewinde M8 | 2.720,00 € VAT |
|
| DK--340615-M10 | Clamping set "B" SWA39 / M10 | 2.720,00 € VAT |
|
|
| DK--340615-M12 | Clamping set "B" SWA39 / M12 | für Anschlussgewinde M12 | 2.720,00 € VAT |
|
| DK--340615-TNUT | Clamping set "B" SWA39 / T-slot 6 | für T-Nut 6 Grundplatten | 2.720,00 € VAT |
|
