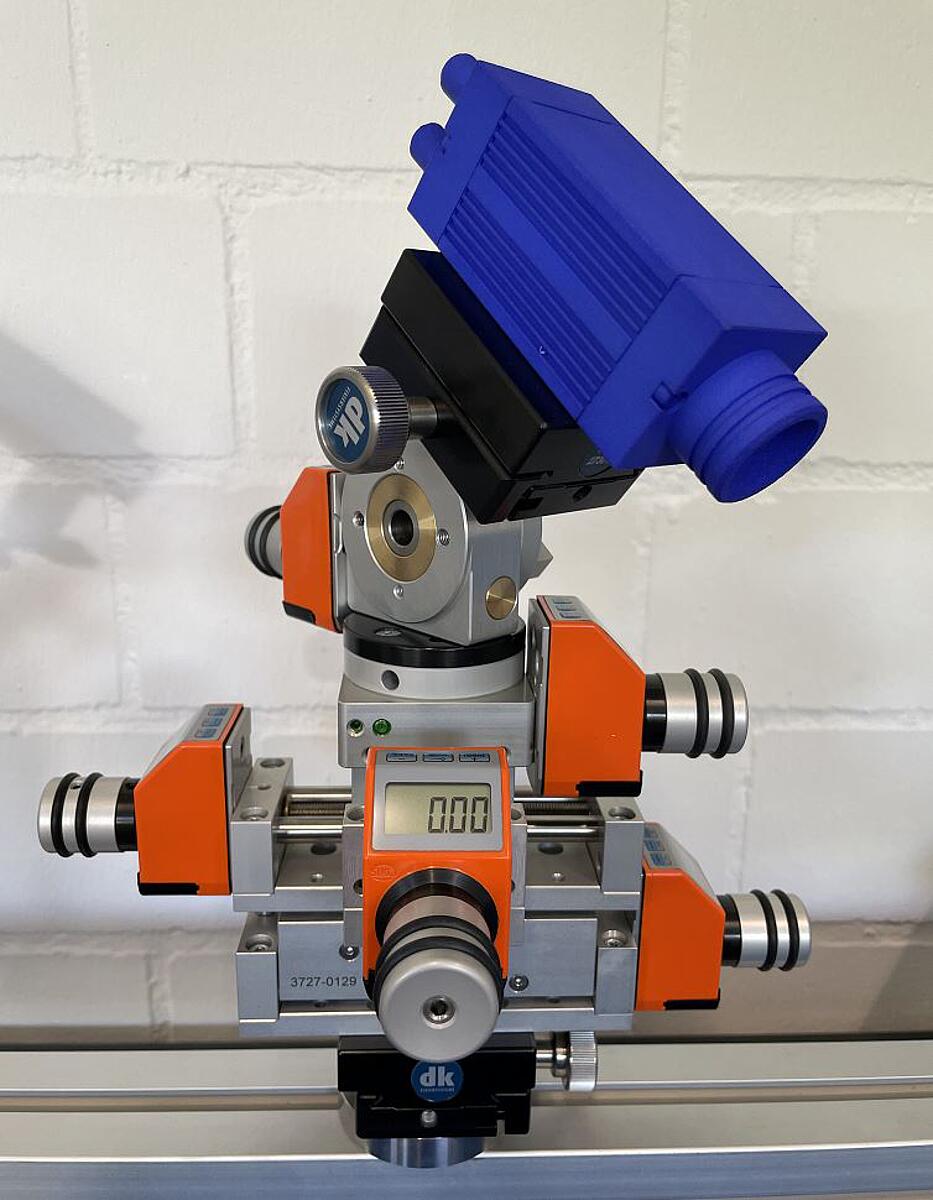

Rotary table with electronic position indicator

360 by worm drive. Display accuracy 0.1°. Reset function. Backlash max 0.15° due

to pre-tensioned mounting; Self-locking; Holds the position even with vibrations

Order number Designation Price (EUR)

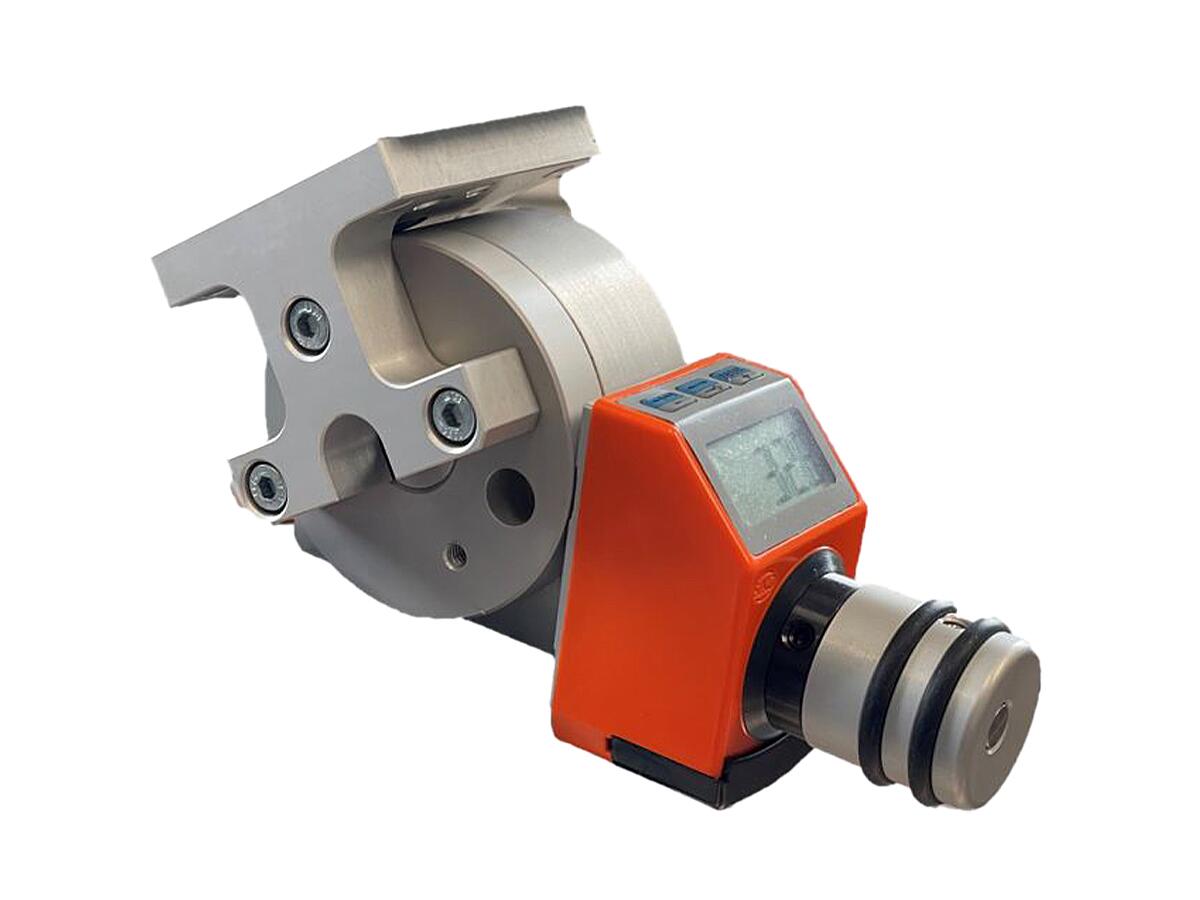

DK--314720-08-D Tilting table with mounting plate 766,00  VAT
DK--314725-08-D Turntable 916,00  VAT
