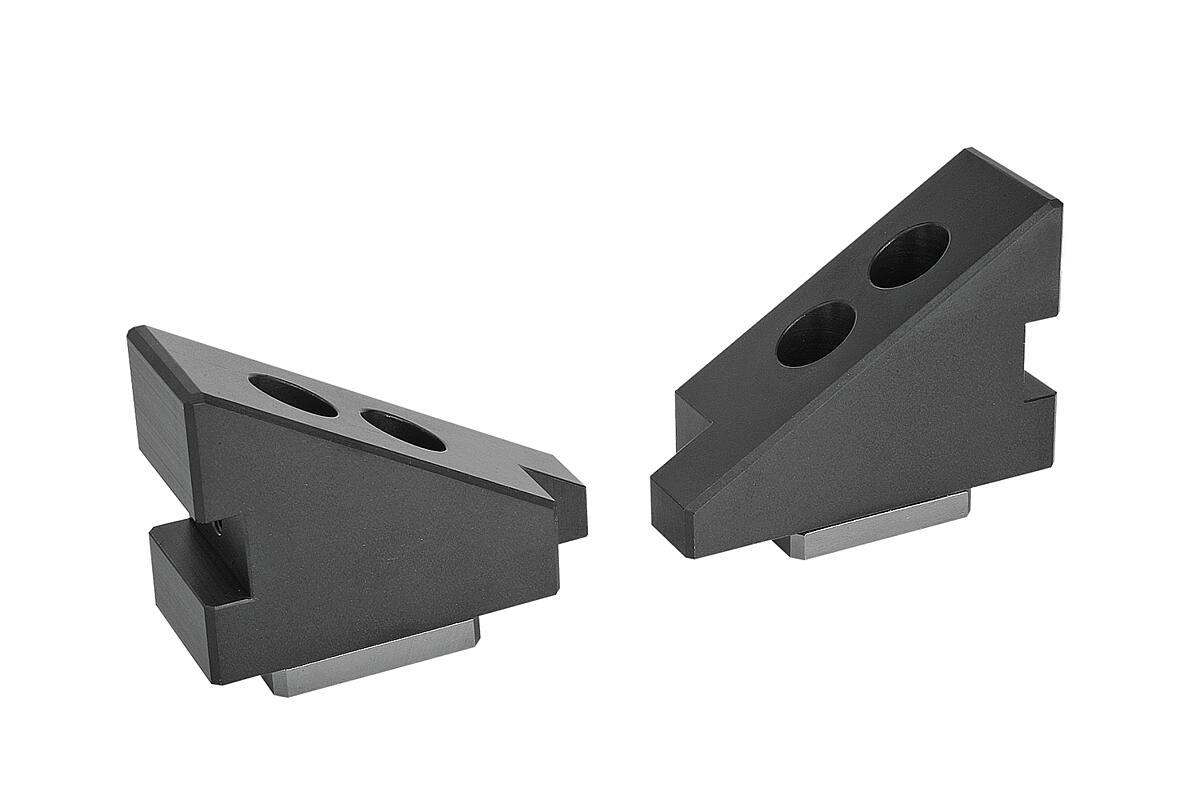

V-block halves for T-slot. The clamping range is freely adjustable. With lateral slots and tapped holes for mounting a tensioning strap
fixture or spring finger. Part 306500 with mounting hole for stops. Material: Hard-coated aluminium/steel. Supplied with: Screws and slot keys
| Order number | L | W | Description | Weight | THREAD | M | PRISMA | M1 | H | Price (EUR) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DK--305500 | 60 | 18 | Prism pairs adjustable on T-slot 6 | 0.08 | M 6 | M6 | 120° | M5 | 42 | 238,00 € VAT |
|
| DK--305700 | 60 | 25 | Prism pairs adjustable on T-slot 6 | 0.18 | M 6 | M6 | 120° | M5 | 42 | 279,00 € VAT |
|
| DK--306500 | 60 | 40 | Prism pairs adjustable on T-slot 6 | 0.22 | M 6 | M6 | 120° | M5 | 52 | 294,00 € VAT |
|
