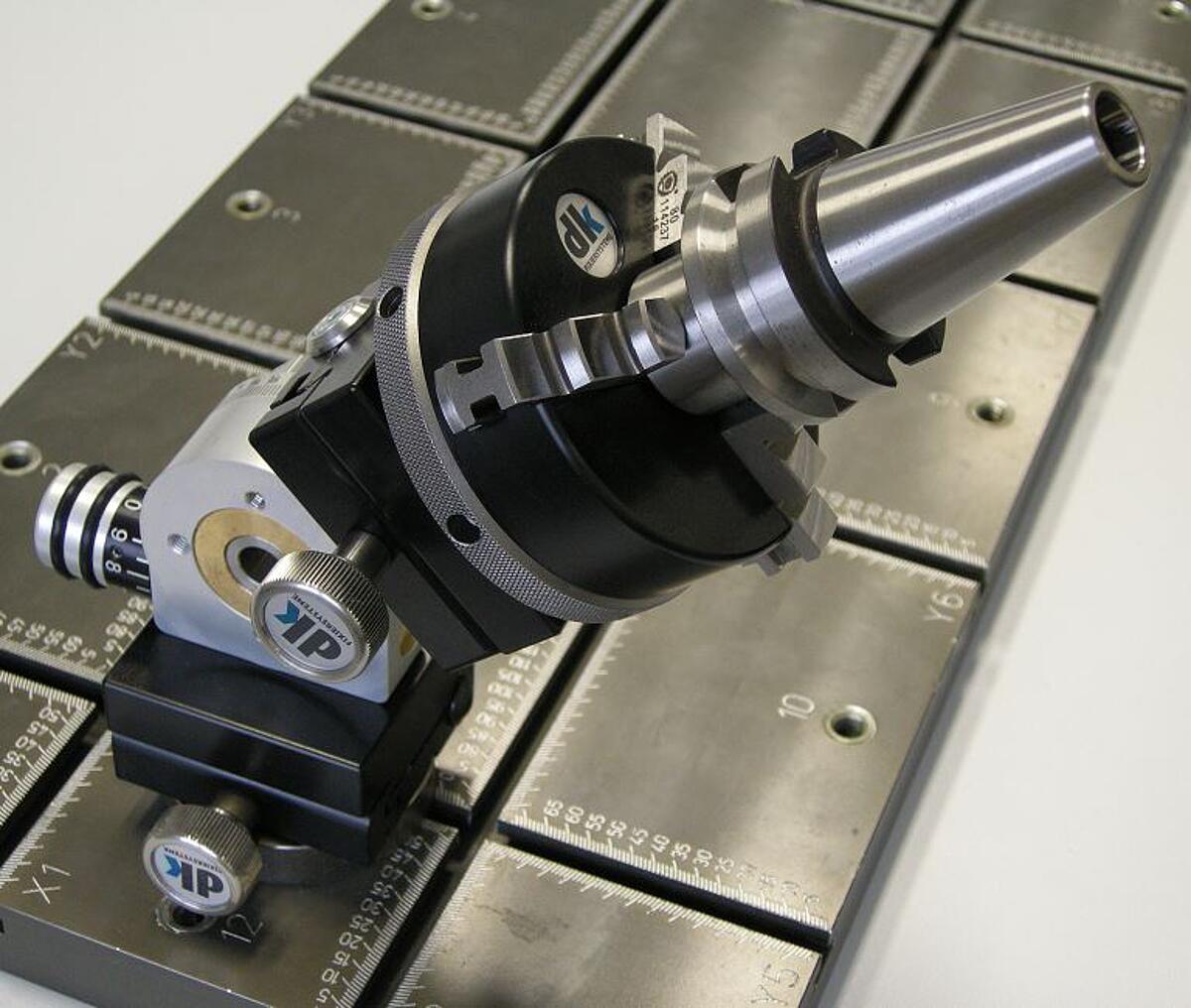

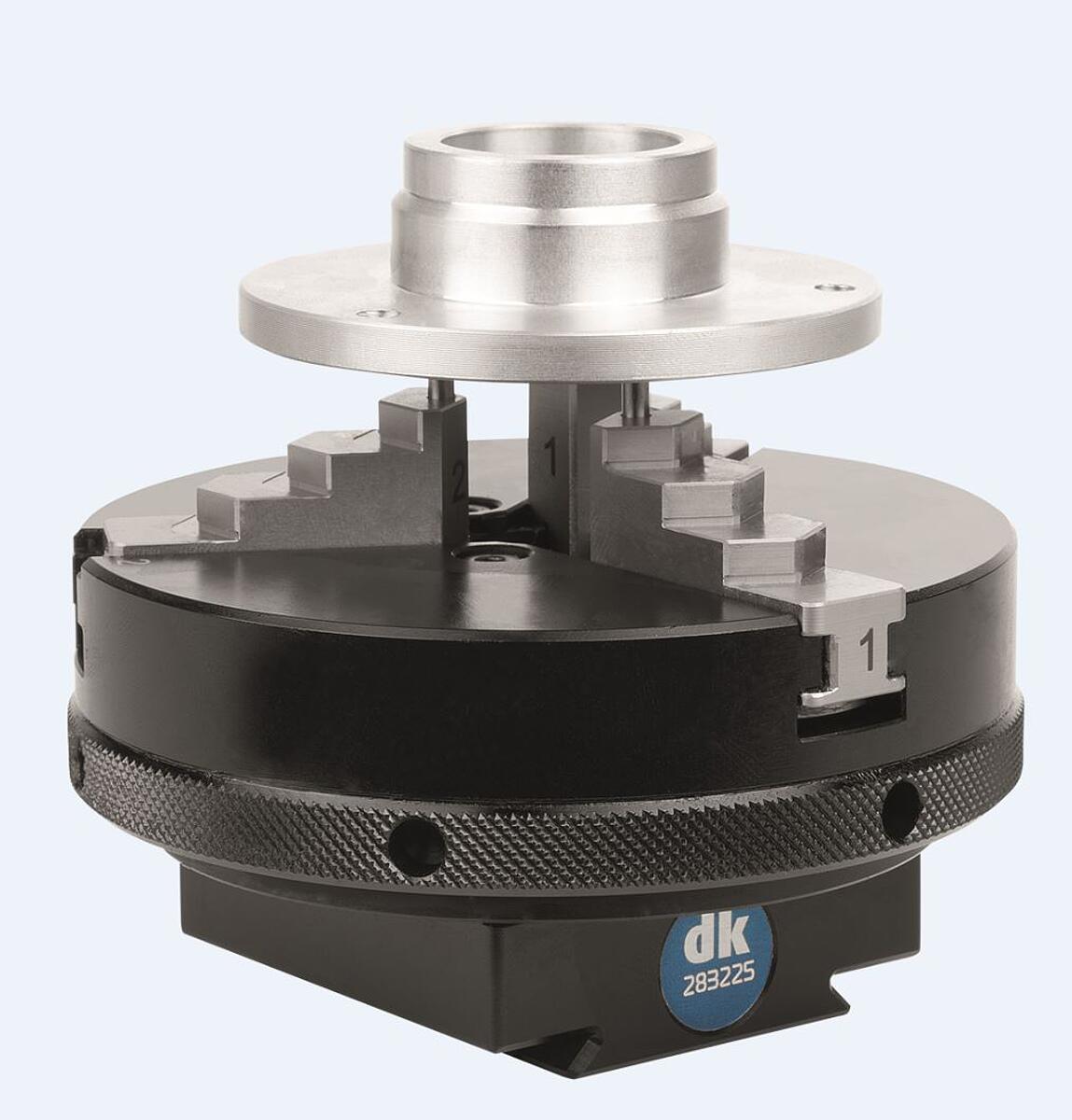

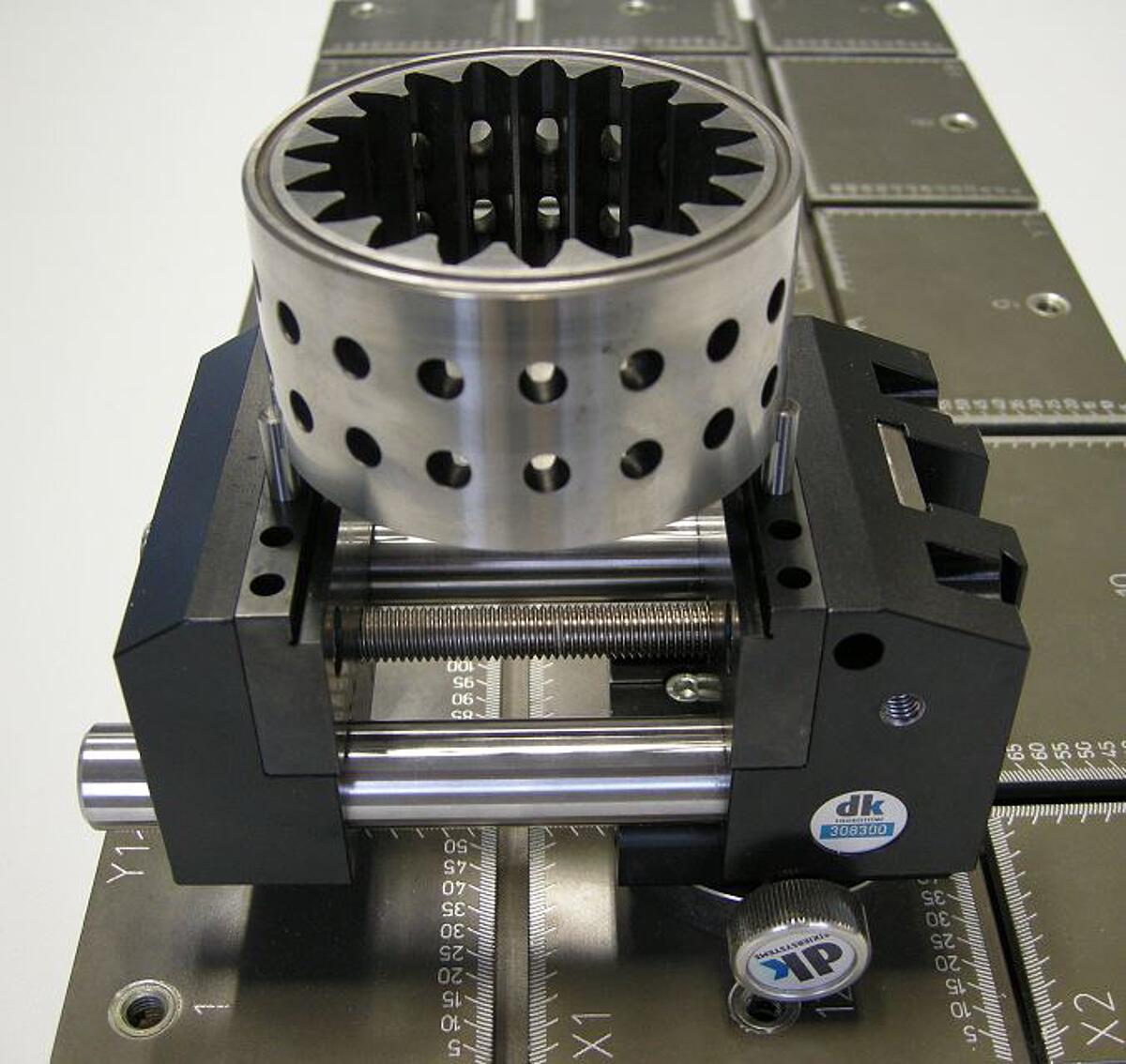

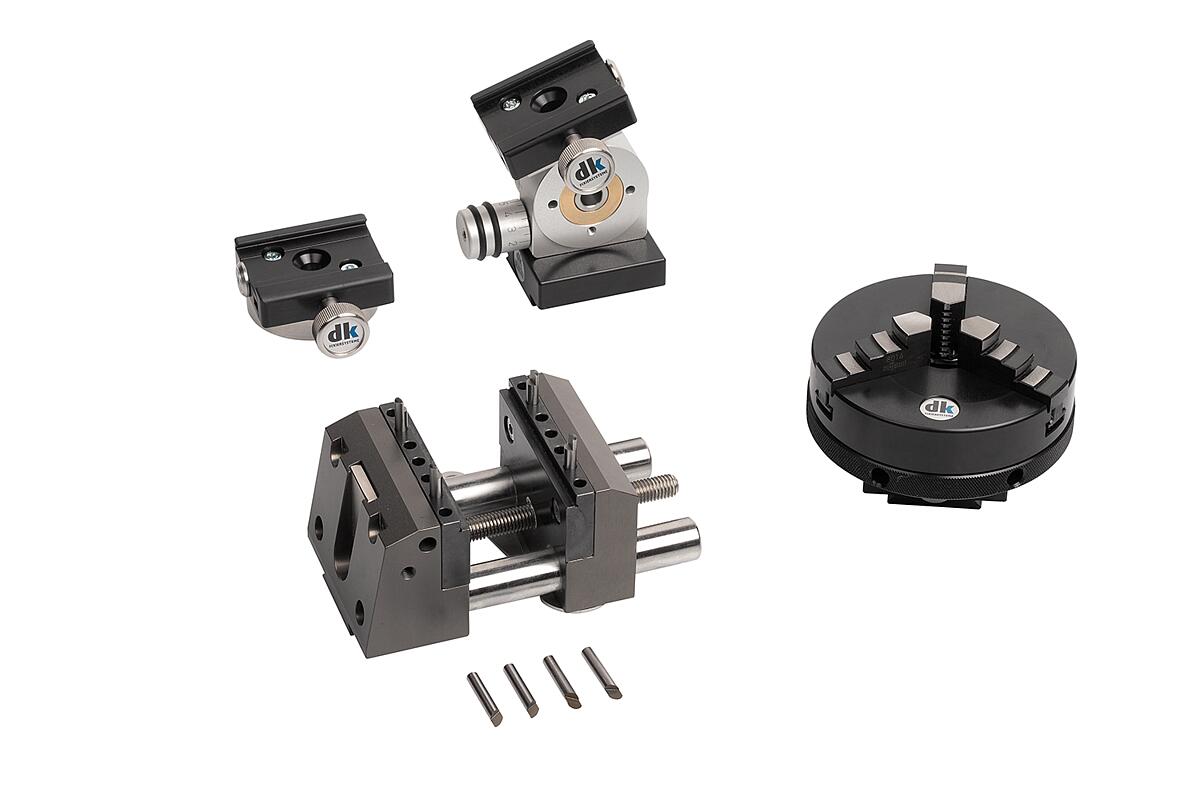

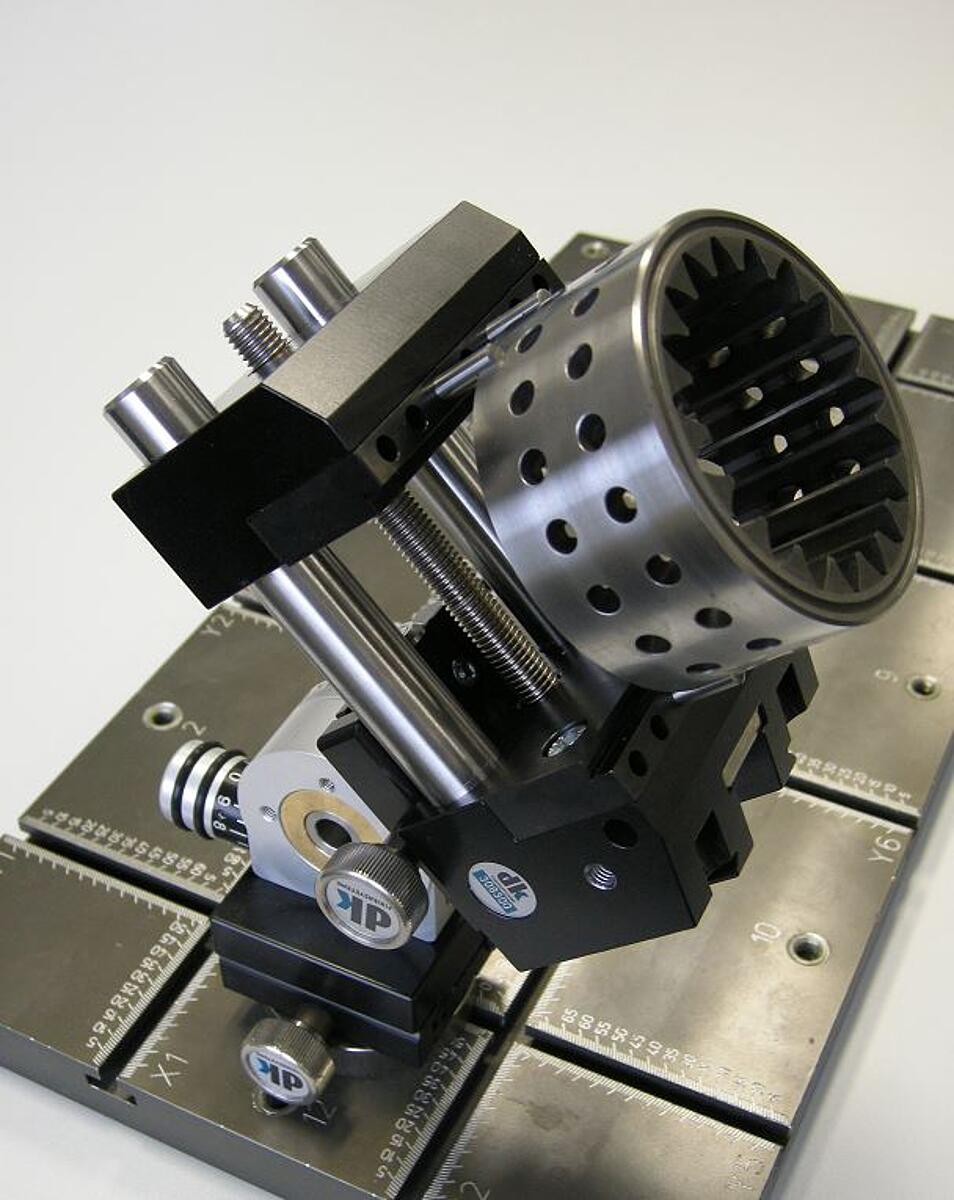

Set "A" with basic, structural and key clamping elements. The precision vice and the chuck from the expanded set can both be mounted directly to the quick-action base as a kind of zero-point clamping fixture. Alternatively, a swivel unit can
be mounted in between enabling 3D spatial positioning of the clamping element and workpiece. This enables zero-point clamping with variable alignment, and scales ensure that positions can always be exactly reproduced for different workpieces.
| Order number | Description | Version | Price (EUR) | |
|---|---|---|---|---|
| DK--340530-M06 | Clamping set "A3" SWA39 / M6 | für Anschlussgewinde M6 | 1.648,00 € VAT |
|
| DK--340530-M08 | Clamping set "A3" SWA39 / M8 | für Anschlussgewinde M8 | 1.648,00 € VAT |
|
| DK--340530-M10 | Clamping set "A3" SWA39 / M10 | 1.648,00 € VAT |
|
|
| DK--340530-M12 | Clamping set "A3" SWA39 / M12 | für Anschlussgewinde M12 | 1.648,00 € VAT |
|
| DK--340530-TNUT | Clamping set "A3" SWA39 / T-slot 6 | für T-Nut 6 Grundplatten | 1.648,00 € VAT |
|
| DK--340540-M06 | Clamping set "A3+" SWA39 M6 | für Anschlussgewinde M6 | 2.930,00 € VAT |
|
| DK--340540-M08 | Clamping set "A3+" SWA39 M8 | für Anschlussgewinde M8 | 2.930,00 € VAT |
|
| DK--340540-M10 | Clamping set "A3+" SWA39 M10 | 2.930,00 € VAT |
|
|
| DK--340540-M12 | Clamping set "A3+" SWA39 M12 | für Anschlussgewinde M12 | 2.930,00 € VAT |
|
| DK--340540-TNUT | Clamping set "A3+" SWA39 / T-slot 6 | für T-Nut 6 Grundplatten | 2.930,00 € VAT |
|
