Base rails

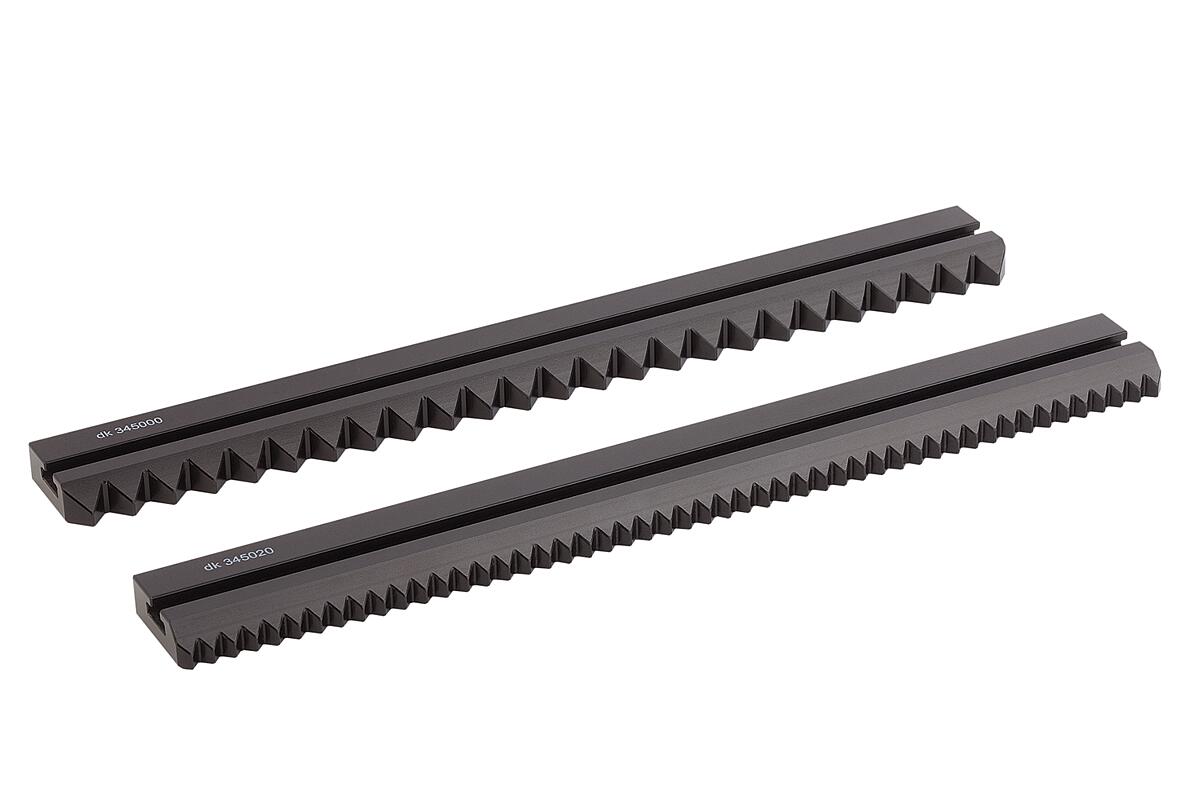

Single-side toothed rail with T-slot. To use as a rest or for mounting modular structural and clamping elements. With 5 mm or 10 mm tooth pitch. Special lengths available on request. Material: Hard-coated

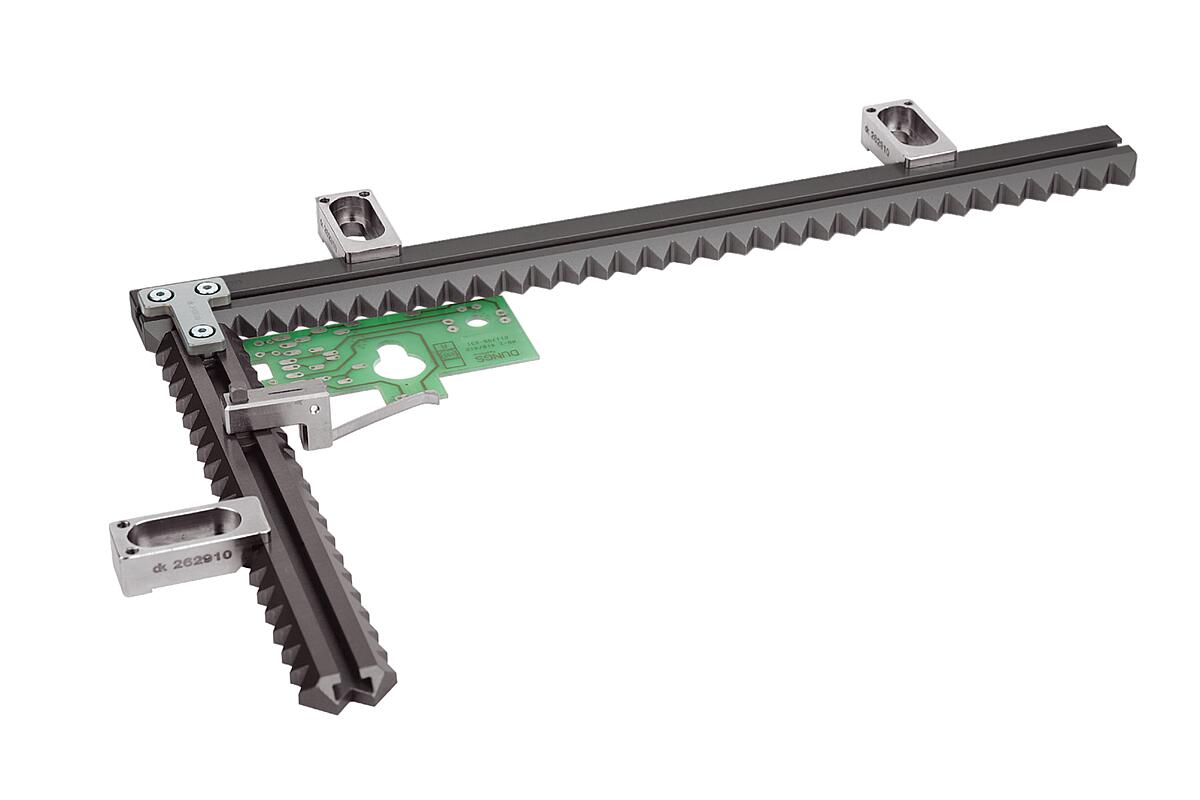

aluminium. Accessories: As accessories, columns Ø 4 mm with M4 thread can be mounted in the base rail using a slot key Art. No. DK--347700 in order to use various spring finger hold-down clamps with a Ø 4 mm locating hole.

Order number	L	Description	Weight	ZT	Price (EUR)
DK--344920	200	Base rails	0.125	5	171,00 € VAT
DK--345020	250	Base rails	0.15	5	188,00 € VAT
DK--345220	350	Base rails	0.205	5	225,00 € VAT
DK--345420	450	Base rails	0.27	5	263,00 € VAT
DK--345620	500	Base rails	0.3	5	300,00 € VAT
DK--344900	200	Base rails	0.116	10	171,00 € VAT
DK--345000	250	Base rails	0.15	10	188,00 € VAT
DK--345200	350	Base rails	0.2	10	225,00 € VAT
DK--345400	450	Base rails	0.26	10	263,00 € VAT
DK--345600	500	Base rails	0.29	10	300,00 € VAT

Zubehör

Beschreibung	Preis EUR
Spring finger hold-down clamps	34,00 € - 84,00 €	zum Produkt
Columns with screw	18,00 € - 30,00 €	zum Produkt
Slot keys	14,00 € - 30,00 €	zum Produkt
