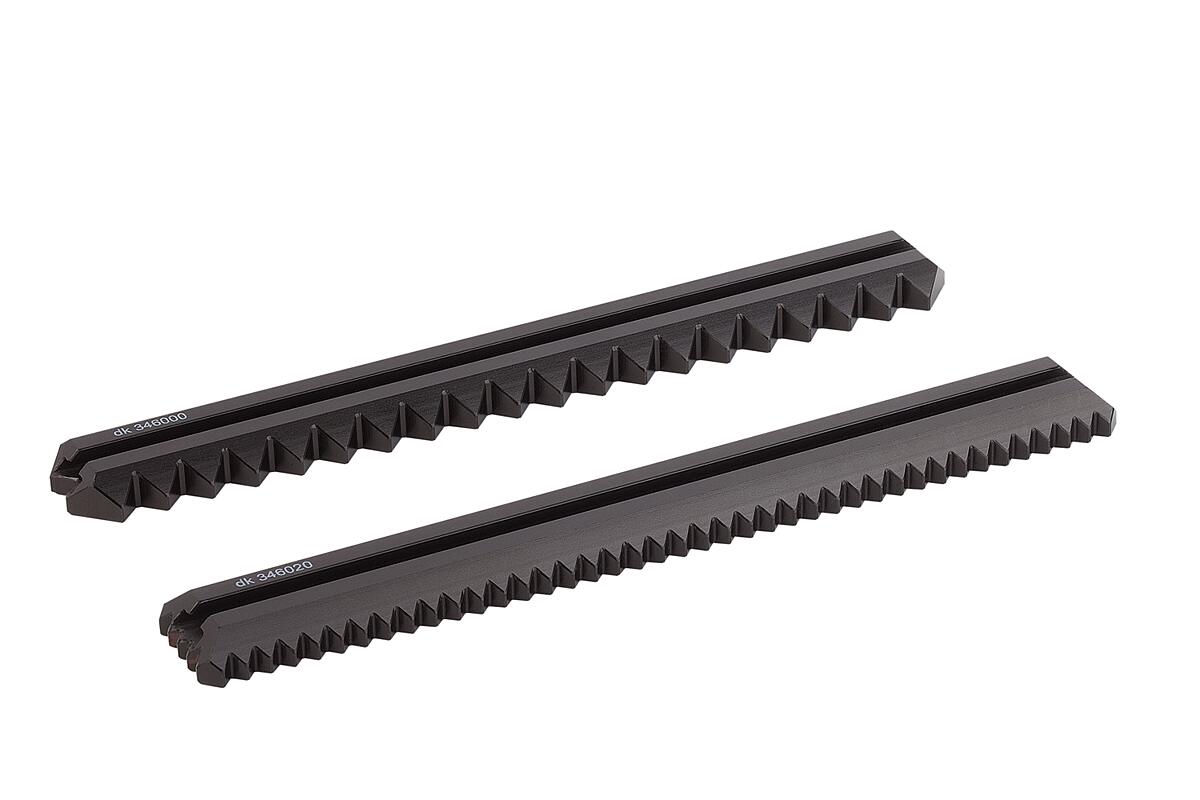

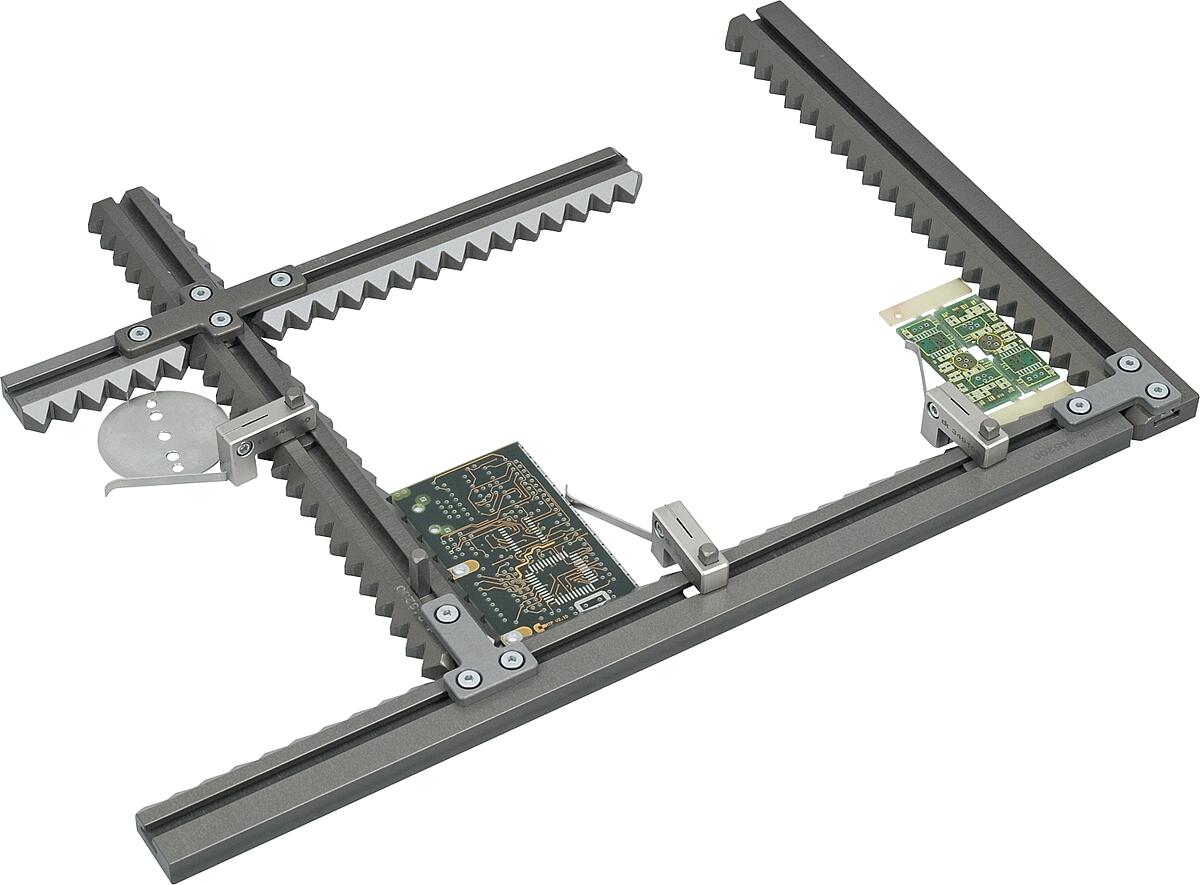

Rails with T-slot to use as a rest or for mounting modular structural and clamping elements. Connecting rails with toothing on two long sides and one end face. Rails with 4-side toothing can also be used as connecting rails between two other rails. Angle or frame constructions also possible
as a combination of different tooth pitches. Material: Hard-coated aluminium. Accessories: As accessories, columns Ø 4 mm with M4 thread can be mounted in the base rail using a slot key Art. No. DK--347700 in order to use various spring finger hold-down clamps with a Ø 4 mm locating hole.
| Order number | L | Description | Weight | ZT | Price (EUR) | |
|---|---|---|---|---|---|---|
| DK--347020 | 60 | Connecting rails | 0.032 | 5 | 94,00 € VAT |
|
| DK--347220 | 100 | Connecting rails | 0.055 | 5 | 102,00 € VAT |
|
| DK--347420 | 150 | Connecting rails | 0.08 | 5 | 123,00 € VAT |
|
| DK--346020 | 200 | Connecting rails | 0.11 | 5 | 169,00 € VAT |
|
| DK--346220 | 250 | Connecting rails | 0.135 | 5 | 188,00 € VAT |
|
| DK--346420 | 350 | Connecting rails | 0.19 | 5 | 225,00 € VAT |
|
| DK--346620 | 400 | Connecting rails | 0.22 | 5 | 258,00 € VAT |
|
| DK--347000 | 60 | Connecting rails | 0.03 | 10 | 94,00 € VAT |
|
| DK--347200 | 100 | Connecting rails | 0.05 | 10 | 102,00 € VAT |
|
| DK--347400 | 150 | Connecting rails | 0.075 | 10 | 123,00 € VAT |
|
| DK--346000 | 200 | Connecting rails | 0.1 | 10 | 169,00 € VAT |
|
| DK--346200 | 250 | Connecting rails | 0.12 | 10 | 188,00 € VAT |
|
| DK--346400 | 350 | Connecting rails | 0.17 | 10 | 225,00 € VAT |
|
| DK--346600 | 400 | Connecting rails | 0.2 | 10 | 258,00 € VAT |
|
